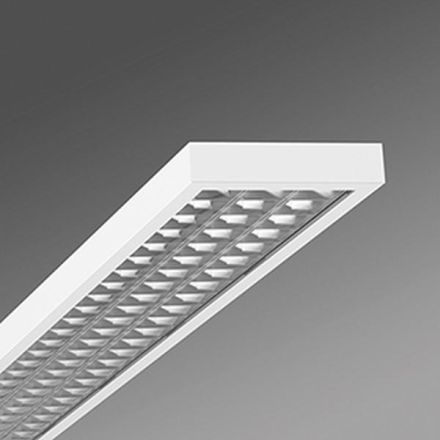

Sheet steel housing, rectangular cross-section, suitable for use in clean rooms and clean room areas in accordance with DIN 14644-1, manufactured in accordance with IPA specifications and the GMP (Good Manufacturing Practice) quality assurance guidelines, direct light distribution using a reflection-enhanced MIRO® aluminum parabolic louvre with a satin finish anodized finish, for computer workstations, all-round glare protection in accordance with the current DIN-EN 12464-1 standard. With clear cover made of laminated safety glass, integrated LED driver design. Electrical connection and connection of the control cable via a 5-pin connection terminal with plug-in contact technology. The aduna clean room light is suitable for direct current (0/50Hz), additional marking must be provided for emergency lights.
| Property | Value |
| Max. System power: | 98 W |
| Rated luminous flux according to IEC 62722-2-1: | 11800 lm |
| Suitable for number of lamps: | 1 |
| Length: | 1173 mm |
| Width: | 340 mm |
| Height/depth: | 75 mm |
| Protection rating (IP): | IP65 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | yes |
| Nominal voltage: | 230 V |
| Housing color: | white |
| Housing material: | steel |
| Color temperature: | 4000 K |
| Impact resistance: | IK07 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 500000 h |
| Suitable for wall mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | medium beam 21-40° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 35 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Material of Cover: | other |
| Light distributor: | other |
| Without dimming function: | no |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Suitable for Light strip configuration: | yes |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | matt |
| Covering of the luminaire with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | yes |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | yes |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming dependent on operating device: | yes |
| Rated service life L90/B10 at 25 °C: | 37000 h |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | without |
| Suitable for lamp power: | 98 W |
| Luminaire luminous efficacy: | 121 lm/W |
| Type of wiring: | Termination |
| Number of poles: | 5 |
