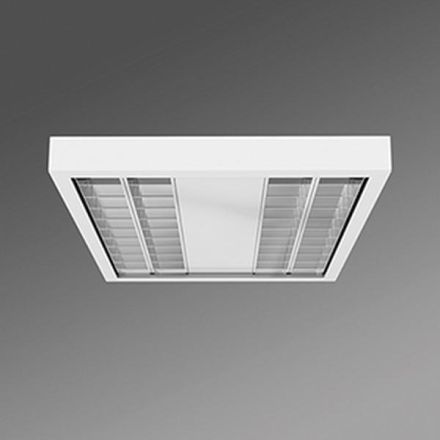

Regiolux 62162016660 aduna-ADAX/600 5200 840 DALI IP65 vw LED ceiling light

Regiolux 62162016660 aduna-ADAX/600 5200 840 DALI IP65 vw LED ceiling light

In stock

SKU: 824571

Price on request

€754.03

€0

Overview

Sheet steel housing, rectangular cross-section, suitable for use in clean rooms and clean room areas in accordance with DIN 14644-1, manufactured in accordance with IPA specifications and the GMP (Good Manufacturing Practice) quality assurance guidelines, direct light distribution using a reflection-enhanced MIRO® aluminum parabolic louvre with a satin finish anodized finish, for computer workstations, all-round glare protection in accordance with the current DIN-EN 12464-1 standard. With clear cover made of laminated safety glass, integrated LED driver design. Electrical connection and connection of the control cable via a 5-pin connection terminal with plug-in contact technology. The aduna clean room light is suitable for direct current (0/50Hz), additional marking must be provided for emergency lights.

Property	Value
Max. System power:	38 W
Rated luminous flux according to IEC 62722-2-1:	5200 lm
Suitable for number of lamps:	1
Length:	597 mm
Width:	597 mm
Height/depth:	75 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	230 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK07
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	500000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 35 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Material of Cover:	other
Light distributor:	other
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for Light strip configuration:	yes
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	yes
Rated service life L90/B10 at 25 °C:	37000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	38 W
Luminaire luminous efficacy:	136 lm/W
Type of wiring:	Termination
Number of poles:	5

Characteristics

Rated service life L90/B10 at 25 °C37000 h

HABAduna-ADAX/600 5200 840 DALI IP65 vw

Manufacturer

HAN62162016660

GTIN4020863450534

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridFrosted

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C500000 hours

Rated luminous flux according to IEC 62722-2-15200lm

Rated ambient temperature according to IEC62722-2-1-20 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width597 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power38W

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth75 mm

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy136lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length597 mm

Max. system performance38W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionNo

Number of poles5

Impact resistanceIK07

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialOther

Housing materialSteel
