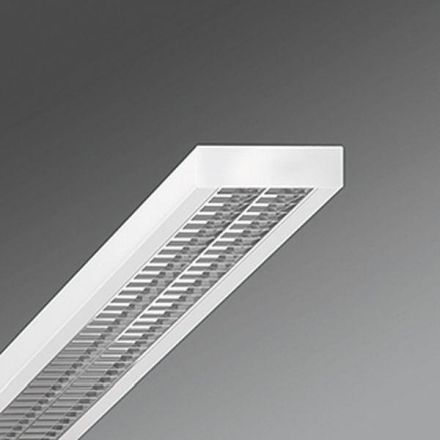

Sheet steel housing, compact rectangular cross-section, height 40mm, prepared for attaching end faces or luminaire connectors made of steel, light distribution direct beam using reflection-enhanced MIRO® aluminum micro parabolic louvre, satin finish with low-cross-section slats, for computer workstations, 65° < 1500 cd/m², all-round glare control in accordance with the current standard DIN-EN 12464-1, self-locking, with light strip installation the louvre is optically continuous, electrical connection and connection of the control cable via 5-pin connection terminal using plug-in contact technology.
| Property | Value |
| Max. System power: | 57 W |
| Rated luminous flux according to IEC 62722-2-1: | 6800 lm |
| Suitable for number of lamps: | 1 |
| Length: | 1179 mm |
| Width: | 161 mm |
| Height/depth: | 54 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 230 V |
| Housing color: | white |
| Housing material: | steel |
| Color temperature: | 4000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Suitable for wall mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | medium beam 21-40° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Cover material: | without cover |
| Light distributor: | other |
| Without dimming function: | no |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Suitable for light strip configuration: | yes |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | matt |
| Covering of the luminaire with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | yes |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | yes |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on operating device: | yes |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | without |
| Suitable for lamp power: | 57 W |
| Luminaire luminous efficacy: | 121 lm/W |
| Wiring type: | suitable for through wiring |
| Number of poles: | 5 |
