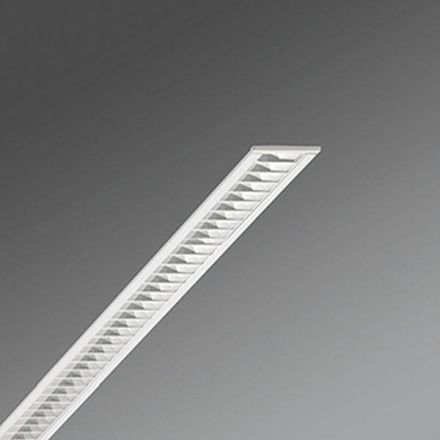

Regiolux 60521026660 hokal-HLEX/1200-1 3200lm 840 DALI LED grid recessed luminaire

Regiolux 60521026660 hokal-HLEX/1200-1 3200lm 840 DALI LED grid recessed luminaire

In stock

SKU: 818793

Price on request

€240.98

€0

Overview

Sheet steel housing suitable for cut-out ceilings and panel ceilings, prepared for fastening end faces or for installation in a light strip, white coated, similar to RAL 9016, direct light distribution using reflection-enhanced MIRO® aluminum micro parabolic louvre, satin finish with low-cross-section slats, light reflection level 97%, for computer workstations, 65° < 1500 cd/m² all-round glare reduction in accordance with the current standard DIN-EN 12464-1, self-locking, optically continuous louvre when installed in a light strip, electrical connection and connection of the control cable via 5-pin connection terminal with plug-in contact technology. Driver integrated.

Property	Value
Max. System power:	28 W
Rated luminous flux according to IEC 62722-2-1:	3400 lm
Suitable for number of lamps:	1
Length:	1176 mm
Width:	84 mm
Height/depth:	72 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	without cover
Light distributor:	other
Installation height/depth:	170 mm
Without dimming function:	no
Installation width:	74 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations according to EN 12464-1:	yes
Suitable for strip lighting configuration:	yes
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Phase control dimming:	no
Programmable dimming:	yes
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	28 W
Luminaire luminous efficacy:	118 lm/W
Type of wiring:	suitable for through wiring
Number of poles:	5

Characteristics

HABHokal-HLEX/1200-1 3200lm 840 DALI

Manufacturer

HAN60521026660

GTIN4020863306701

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridFrosted

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13400lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width84 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Installation width74 mm

Installation height/depth170 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power28W

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth72 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy118lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1176 mm

Max. system performance28W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionNo

Number of poles5

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialWithout cover

Housing materialSteel
