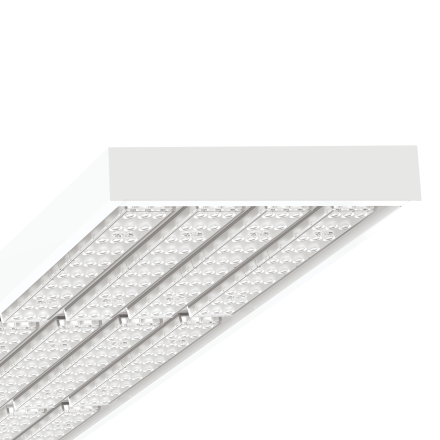

HABSportsman-SOHB/1300 IP40 21000 840 ET vw
HAN37430314110
GTIN4020863383207
Covering the luminaire with thermal insulation material possibleNo
Connection typeOther
Type of wiringDiploma
Execution of the gridWithout
Beam angleWide beam 41-80°
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-121000lm
Rated ambient temperature according to IEC62722-2-125 to 35 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width340 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for lamp power132W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionYes
Suitable for wall mountingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11Without
Height/Depth59 mm
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy160lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorFocus lens
Light distributionSymmetrical
Length1338 mm
Max. system performance132W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage230V
Without dimming functionYes
Number of poles3
Impact resistanceIK03
IP protection)IP40
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialOther
Housing materialSteel
