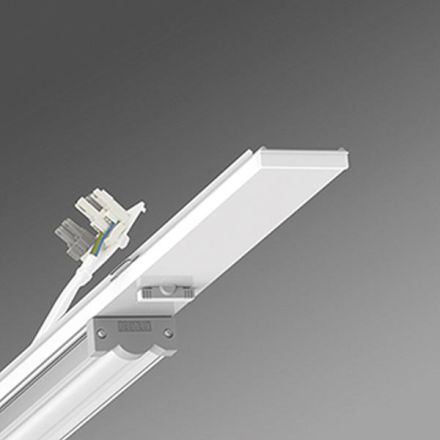

Regiolux 18202074150 SDGV 1500 7000lm 840 NL-B3 IP40 LED device carrier

Regiolux 18202074150 SDGV 1500 7000lm 840 NL-B3 IP40 LED device carrier

In stock

SKU: 818769

Price on request

€340.88

€0

Overview

Device carrier made of galvanized, profiled sheet steel, surface coated with polyester resin. Tool-free fastening with two integrated twist locks. LED unit made of extruded aluminum profile, naturally anodized with plastic end faces. Suitable for fastening LED light guides. Can be positioned variably in the support rail. Direct, unshielded light distribution, LED diffuser cover made of polycarbonate, with emergency light battery 3h and integrated status display, three-hour emergency light operation. Heat-resistant cables including 1m connecting cable and 4-pin quick-assembly plug part with tool-free phase preselection and search finger, an additional pole on the plug part allows a conductor of the through-wiring to be used as an unswitched charging phase,

Property	Value
Suitable for number of lamps:	1
Rated luminous flux according to IEC 62722-2-1:	7000 lm
Color temperature:	4000 K
With lamp:	yes
Operating device:	LED operating device current-controlled
Length:	1531 mm
Width:	55 mm
Height/depth:	43 mm
Protection class (IP):	IP40
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct
Suitable for emergency lighting:	yes
Housing material:	steel
Housing color:	white
Color rendering index CRI:	80-89
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	230 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Beam angle:	free beam/diffuse
Rated service life L80/B10 at 25 °C:	50000 h
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp wattage:	43 W
Max. system power:	43 W
Wiring type:	with through-wiring
Number of poles:	4
Connection type:	other

Characteristics

HABSDGV 1500 7000lm 840 NL-B3 IP40

Manufacturer

HAN18202074150

GTIN4020863306800

Connection typeOther

Type of wiringWith through wiring

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-17000lm

Operating deviceLED control gear current controlled

Width55 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power43W

Suitable for number of lamps1

Suitable for emergency lightingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth43 mm

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length1531 mm

Max. system performance43W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionYes

Number of poles4

ReflectorWithout

IP protection)IP40

Protection classI

Voltage typeAC

Housing materialSteel
