Regiolux 18205206950 SDGV 1500 5100lm 830-860 DALI DT8 IP40 LED device carrier

Regiolux 18205206950 SDGV 1500 5100lm 830-860 DALI DT8 IP40 LED device carrier

In stock

SKU: 818997

Price on request

€292.30

€0

Overview

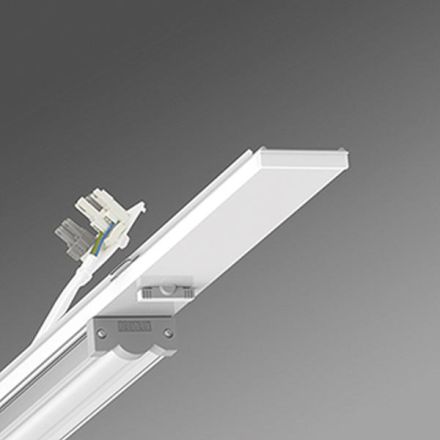

Device carrier made of galvanized, profiled sheet steel, surface coated with polyester resin. Tool-free fastening with two integrated twist locks. LED unit made of extruded aluminum profile, naturally anodized with plastic end faces. Suitable for fastening LED light guides. Can be positioned variably in the support rail. Direct, unshielded light distribution, LED diffuser cover made of polycarbonate, heat-resistant cables including 1m connecting cable and quick-assembly plug part with tool-free phase preselection and search finger.

Property	Value
Suitable for number of lamps:	1
Rated luminous flux according to IEC 62722-2-1:	5300 lm
Color temperature:	2700 to 6500 K
With lamp:	yes
Operating device:	LED operating device, current-controlled
Length:	1531 mm
Width:	55 mm
Height/depth:	43 mm
Protection class (IP):	IP40
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct
Suitable for emergency lighting:	no
Housing material:	steel
Housing color:	white
Color rendering index CRI:	90-100
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	230 V
Light source:	LED not replaceable
Light color:	yellow
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Diffuser lens/optics/panel
Beam angle:	free beam/diffuse
Rated service life L80/B10 at 25 °C:	50000 h
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp wattage:	52 W
Max. system power:	52 W
Wiring type:	with through wiring
Number of poles:	5
Connection type:	other

Characteristics

HABSDGV 1500 5100lm 830-860 DALI DT8 IP40

Manufacturer

HAN18205206950

GTIN4020863334131

Connection typeOther

Type of wiringWith through wiring

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-15300lm

Operating deviceLED control gear current controlled

Width55 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Color temperature2700 to 6500 K

Color rendering index CRI90-100

VersionWithout

Suitable for lamp power52W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth43 mm

LampsLED not replaceable

Light emissionDirect

Light colorYellow

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length1531 mm

Max. system performance52W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionNo

Number of poles5

ReflectorWithout

IP protection)IP40

Protection classI

Voltage typeAC

Housing materialSteel
