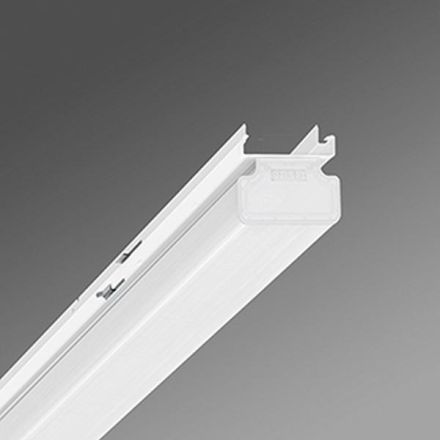

Regiolux 18238404100 SDGLK 1500 8300-5000 840 ET multi vw LED device carrier

Regiolux 18238404100 SDGLK 1500 8300-5000 840 ET multi vw LED device carrier

In stock

SKU: 819449

Price on request

€181.61

€0

Overview

Device carrier made of galvanized, profiled sheet steel, surface coated with polyester resin. Tool-free fastening with integrated side lever locks for quick insertion into the support rail. LED unit in housing length for an optically continuous light strip. Direct/indirect light distribution, opal diffuser made of PMMA plastic with internal longitudinal prisms, creates a uniform, homogeneous appearance with ceiling illumination. Heat-resistant cables including fixed 3-pin quick-assembly plug with tool-free phase preselection and search finger.

Property	Value
Suitable for number of lamps:	1
Rated luminous flux according to IEC 62722-2-1:	8100 lm
Color temperature:	4000 K
With lamp:	yes
Operating device:	not required
Length:	1531 mm
Width:	63 mm
Height/depth:	54 mm
Protection class (IP):	IP20
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct/indirect
Suitable for emergency lighting:	no
Housing material:	steel
Housing colour:	white
Colour rendering index CRI:	80-89
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	230 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Beam angle:	medium beam 21-40°
Rated service life L80/B10 at 25 °C:	50000 h
Glow wire test according to IEC 60695-2-11:	without
Suitable for Lamp power:	27 to 49 W
Max. system power:	49 W
Power factor:	91
Wiring type:	with through wiring
Number of poles:	3
Connection type:	other

Characteristics

HABSDGLK 1500 8300-5000 840 ET multi vw

Manufacturer

HAN18238404100

GTIN4020863359530

Connection typeOther

Type of wiringWith through wiring

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-18100lm

Operating deviceNot required

Width63 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power27 to 49 W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth54 mm

Power factor91

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length1531 mm

Max. system performance49W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionYes

Number of poles3

ReflectorWithout

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialSteel
