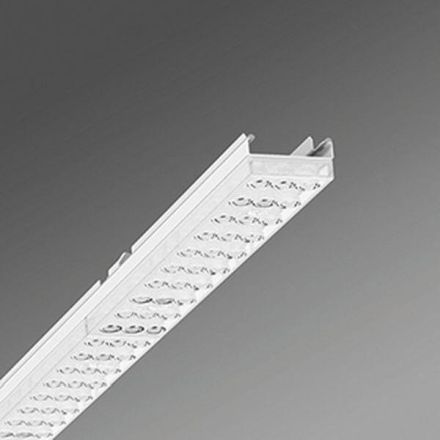

Regiolux 18520304100 SDGOT 1500 8000lm 840 LED device carrier

Regiolux 18520304100 SDGOT 1500 8000lm 840 LED device carrier

In stock

SKU: 819284

Price on request

€149.29

€0

Overview

Device carrier made of galvanized, profiled sheet steel, surface coated with polyester resin. Tool-free fastening with design-integrated pressure fasteners ensure protection against theft and dismantling. Direct, deep-beam light distribution using Individual.Lens.Optic made of PMMA plastic. The single lens optics ensure ease of installation and are easy to maintain thanks to the easy-to-clean surface. The rhythm of the 3-row single lens arrangement is perfectly coordinated within and across the device carrier and ensures a homogeneous appearance in the object. Heat-resistant cables including a fixed 3-pin quick-assembly plug with tool-free phase preselection and search finger.

Property	Value
Suitable for number of lamps:	1
Rated luminous flux according to IEC 62722-2-1:	8200 lm
Color temperature:	4000 K
With lamp:	yes
Operating device:	LED operating device current-controlled
Length:	1531 mm
Width:	55 mm
Height/depth:	37 mm
Protection class (IP):	IP20
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct
Suitable for emergency lighting:	no
Housing material:	steel
Housing color:	white
Color rendering index CRI:	80-89
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	230 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Beam angle:	medium beam 21-40°
Rated service life L80/B10 at 25 °C:	50000 h
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp wattage:	53 W
Max. system power:	53 W
Wiring type:	with through-wiring
Number of poles:	3
Connection type:	other

Characteristics

HABSDGOT 1500 8000lm 840

Manufacturer

HAN18520304100

GTIN4020863325535

Connection typeOther

Type of wiringWith through wiring

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-18200lm

Operating deviceLED control gear current controlled

Width55 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power53W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth37 mm

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorFocus lens

Light distributionSymmetrical

Length1531 mm

Max. system performance53W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionYes

Number of poles3

ReflectorWithout

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialSteel
