Regiolux 19070002005 SRGV/0750 safe DA 760 NL-B3 sg LED device carrier

Regiolux 19070002005 SRGV/0750 safe DA 760 NL-B3 sg LED device carrier

In stock

SKU: 820997

Price on request

€469.38

€0

Overview

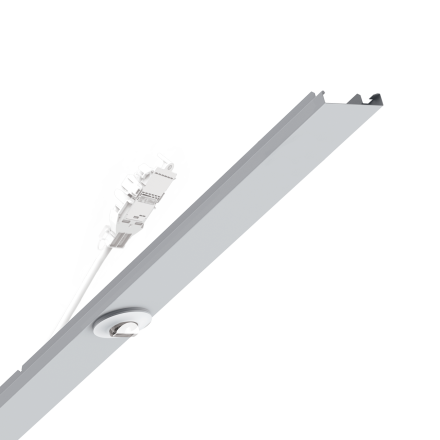

Device carrier made of galvanized, profiled sheet steel, surface coated with polyester resin paint, with two twist locks for quick insertion into the support rail, for integration of emergency lighting or connection to a central battery. Can be variably positioned in the support rail. Direct double asymmetric light distribution using a single lens that can be rotated by 90°. With emergency light battery 3h and integrated status display, three-hour emergency light operation. Electrical connection using a 0.7 m connecting cable for variable device carrier positioning in the light strip with 5-pin quick-assembly plug with free phase preselection. Integrated guide aid for quick contact

Property	Value
Suitable for number of lamps:	1
Rated luminous flux according to IEC 62722-2-1:	200 lm
Color temperature:	6000 K
With lamp:	yes
Operating device:	LED operating device, current-controlled
Length:	765 mm
Width:	55 mm
Height/depth:	35 mm
Protection class (IP):	IP20
Protection class:	I
Light distribution:	double asymmetric
Light emission:	direct
Suitable for emergency lighting:	yes
Housing material:	steel
Housing colour:	grey
Colour rendering index CRI:	70-79
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	230 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Beam angle:	wide beam 41-80°
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	4 W
Max. System power:	4 W
Wiring type:	with through-wiring
Number of poles:	5
Connection type:	other

Characteristics

HABSRGV/0750 safe DA 760 NL-B3 sg

Manufacturer

HAN19070002005

GTIN4020863420469

Connection typeOther

Type of wiringWith through wiring

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-1200lm

Operating deviceLED control gear current controlled

Width55 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature6000K

Color rendering index CRI70-79

VersionWithout

Suitable for lamp power4W

Suitable for number of lamps1

Suitable for emergency lightingYes

Housing colorGray

Glow wire test according to IEC 60695-2-11Without

Height/Depth35 mm

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorFocus lens

Light distributionDouble asy mmetric

Length765 mm

Max. system performance4W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionYes

Number of poles5

ReflectorWithout

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialSteel
