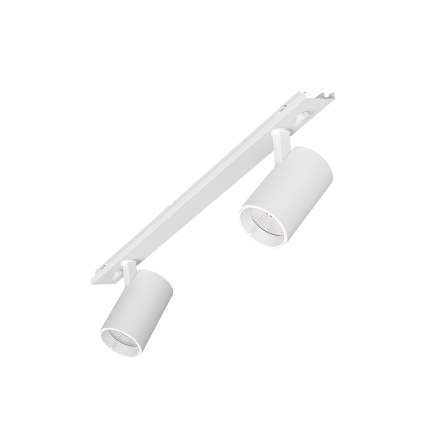

Regiolux 19105504030 SRGV/0750 2xspotty-M 30° 5800 930 ET vw LED device carrier

Regiolux 19105504030 SRGV/0750 2xspotty-M 30° 5800 930 ET vw LED device carrier

In stock

SKU: 821581

Price on request

€402.33

€0

Overview

Device carrier made of galvanized, profiled sheet steel, surface coated with polyester resin paint, with twist locks for quick insertion into the support rail, spotlight unit made of die-cast aluminum, housing powder-coated, rotatable by 350° and pivotable by 90°. Device carrier can be variably positioned in the support rail. Direct, deep-beam light distribution using a faceted, high-gloss reflector made of highly efficient MIRO-SILVER aluminum, clear safety glass pane. Electrical connection using a 0.7 m connecting cable for variable device carrier positioning in the light strip with a 3-pin quick-assembly plug with freely positionable phases. Integrated guide aid for quick contact.

Property	Value
Suitable for number of lamps:	1
Rated luminous flux according to IEC 62722-2-1:	6400 lm
Color temperature:	3000 K
With lamp:	yes
Operating device:	LED operating device current-controlled
Length:	765 mm
Width:	55 mm
Height/depth:	201 mm
Protection class (IP):	IP20
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct
Suitable for emergency lighting:	no
Housing material:	steel
Housing color:	white
Color rendering index CRI:	80-89
With operating device:	yes
Reflector:	matt
Socket:	without
Nominal voltage:	230 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Beam angle:	medium beam 21-40°
Rated service life L80/B10 at 25 °C:	50000 h
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp wattage:	69 W
Max. system power:	69 W
Wiring type:	with through-wiring
Number of poles:	3
Connection type:	other

Characteristics

HABSRGV/0750 2xspotty-M 30° 5800 930 ET vw

Manufacturer

HAN19105504030

GTIN4020863388752

Connection typeOther

Type of wiringWith through wiring

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-16400lm

Operating deviceLED control gear current controlled

Width55 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power69 W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth201 mm

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorReflector

Light distributionSymmetrical

Length765 mm

Max. system performance69 W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionYes

Number of poles3

ReflectorFrosted

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialSteel
