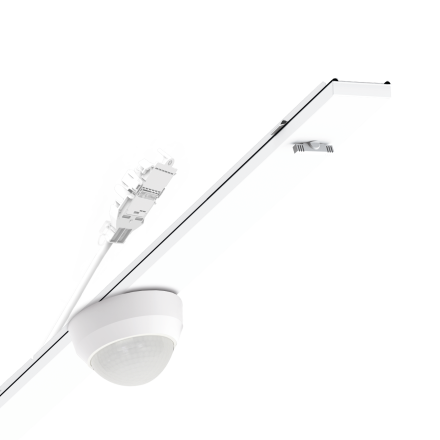

Device carrier made of galvanized, profiled sheet steel, surface coated with polyester resin. Tool-free fastening with integrated twist locks for quick insertion into the support rail. Integrated front sides made of plastic with sealing lips and a circumferentially closed seal to the support rail for protection class up to IP54. For integrating sensors and control units into the light strip, can be variably positioned in the support rail. Electrical connection using a 0.7 m connecting cable for variable device carrier positioning in the light strip with freely positionable phases. Integrated guide aid for quick contact, LC system: easy19, netlife easy system, easy own project planning, easy installation, predefined functions, easy commissioning via remote control, app, DIP, rotary switch, etc., Regiolux classification: EASY, former designation: S17, control signal: slave signal, communication: wired, sensor technology: PIR - passive infrared, installation height (min/max): 2m to 10m, detection range: max. D=48m, system compatibility: easy06, easy15, note: use only with PD4 master sensor, application: industry, logistics, garages, corridors, sports facilities, function: motion detection, presence detection,
| Property | Value |
| With light source: | no |
| Operating device: | not required |
| Length: | 765 mm |
| Width: | 102 mm |
| Height/depth: | 99 mm |
| Protection type (IP): | IP54 |
| Protection class: | I |
| Light distribution: | without |
| Light emission: | without |
| Suitable for emergency lighting: | no |
| Housing material: | steel |
| Housing color: | white |
| Color rendering index CRI: | 80-89 |
| With control gear: | yes |
| Reflector: | without |
| Socket: | without |
| Nominal voltage: | 230 V |
| Light source: | other |
| Light color: | other |
| Voltage type: | AC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming manufacturer-specific: | yes |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | yes |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | other |
| Beam angle: | medium beam 21-40° |
| Glow wire test according to IEC 60695-2-11: | without |
| Type of wiring: | with through wiring |
| Number of poles: | 4 |
| Connection type: | other |
