Regiolux 19410004230 SRGOB/1500 7600-4600 830 ET multi vw LED device carrier

Regiolux 19410004230 SRGOB/1500 7600-4600 830 ET multi vw LED device carrier

In stock

SKU: 823868

Price on request

€179.83

€0

Overview

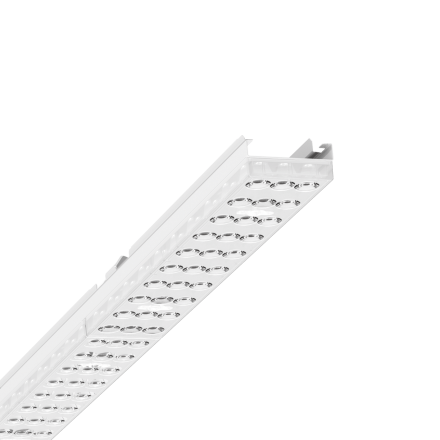

Device carrier made of galvanized, profiled sheet steel, surface coated with polyester resin. Tool-free fastening with design-integrated pressure locks ensure protection against theft and dismantling. Direct wide beam light distribution using Individual.Lens.Optic made of PMMA plastic. The single lens optics ensure ease of installation and are easy to maintain thanks to the easy-to-clean surface. The rhythm of the 3-row single lens arrangement is perfectly coordinated within and across the device carrier and ensures a homogeneous appearance in the object. Electrical connection using a fixed 3-pin quick-assembly plug with free phase preselection. Integrated guide aid for quick contact.

Property	Value
Suitable for number of lamps:	1
Rated luminous flux according to IEC 62722-2-1:	7600 lm
Color temperature:	3000 K
With lamp:	yes
Operating device:	not required
Length:	1531 mm
Width:	55 mm
Height/depth:	33 mm
Protection class (IP):	IP20
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct
Suitable for emergency lighting:	no
Housing material:	steel
Housing colour:	white
Colour rendering index CRI:	80-89
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	230 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Beam angle:	wide beam 41-80°
Rated service life L80/B10 at 25 °C:	50000 h
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp wattage:	30 to 53 W
Max. system power:	53 W
Wiring type:	with through-wiring
Number of poles:	3
Connection type:	other

Characteristics

HABSRGOB/1500 7600-4600 830 ET multi vw

Manufacturer

HAN19410004230

GTIN4020863398478

Connection typeOther

Type of wiringWith through wiring

Beam angleWide beam 41-80°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-17600lm

Operating deviceNot required

Width55 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power30 to 53 W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth33 mm

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorFocus lens

Light distributionSymmetrical

Length1531 mm

Max. system performance53W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionYes

Number of poles3

ReflectorWithout

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialSteel
