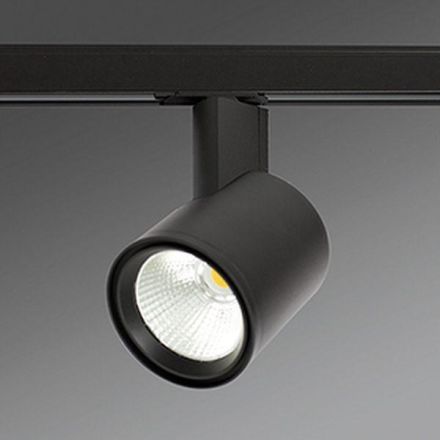

Regiolux 37512034134 emphara-EMTT/110 2400 819 ET sw LED track spotlight

Regiolux 37512034134 emphara-EMTT/110 2400 819 ET sw LED track spotlight

In stock

SKU: 819726

Price on request

€203.62

€0

Overview

LED track spotlight, compact spotlight unit made of die-cast aluminum with driver integrated into the articulated arm, powder-coated housing. Direct, deep-beam light distribution using a high-gloss faceted reflector made of highly efficient MIRO-SILVER aluminum with a reflection level of 99.8%, clear safety glass pane, integrated electronic LED driver, connection via DPSN 3-phase track adapter,

Property	Value
Max. System power:	36 W
Rated luminous flux according to IEC 62722-2-1:	2400 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP20
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	110 mm
Width:	180 mm
Height/depth:	254 mm
With motion detector:	no
Color temperature:	1900 K
Nominal voltage:	230 V
Suitable for lamp power:	36 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high-gloss
Suitable for number of bulbs:	1
Luminous flux:	2400 lm
Cover material:	without
Cover of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	other
Light emission:	direct
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of Wiring:	with through-wiring
Number of poles:	3
Connection type:	other
Luminous efficacy:	67 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	yes
Glow wire test in accordance with IEC 60695-2-11:	without
Photobiological safety in accordance with EN 62471:	other
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABEmphara-EMTT/110 2400 819 ET sw

Manufacturer

HAN37512034134

GTIN4020863368013

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringWith through wiring

Beam angleMedium beam 21-40°

Rated luminous flux according to IEC 62722-2-12400lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width180 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature1900K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power36W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11Without

Height/Depth254 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy67lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2400lm

Light distributorOther

Light distributionSymmetrical

Length110 mm

Max. system performance36W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471Other

Number of poles3

ReflectorHigh gloss

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable

Cover materialWithout

Housing materialAluminum
