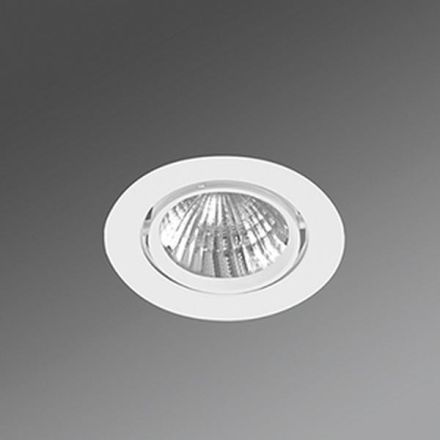

Regiolux 37570036630 rotara-ROET/144 2500lm 830 DALI SK2 LED recessed ceiling spotlight

Regiolux 37570036630 rotara-ROET/144 2500lm 830 DALI SK2 LED recessed ceiling spotlight

In stock

SKU: 818905

Price on request

€220.04

€0

Overview

Housing made of die-cast aluminum, powder-coated, round design, die-cast aluminum heat sink for effective passive cooling, reflector unit gimbal-mounted, with fastening springs for tool-free installation, suitable for ceiling thicknesses of 10mm-20mm, direct, deep-beam light distribution using a high-gloss, faceted reflector made of highly efficient MIRO-SILVER® aluminum with a reflection factor of 99.8%, clear safety glass pane, external driver wired for operation with the light. Electrical connection via 0.7m long connecting cable, 2x0.75mm²+2x0.75mm².

Property	Value
Max. System power:	23 W
Rated luminous flux according to IEC 62722-2-1:	2500 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	138 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	140 mm
With control gear:	yes
Suitable for recessed mounting:	yes
Height/depth:	94 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Suitable for lamp power:	23 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK00
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high-gloss
Suitable for number of bulbs:	1
Luminous flux:	2500 lm
Cover material:	without
Covering the light with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With Light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	other
Light emission:	direct
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Wiring type:	Termination
Number of poles:	4
Connection type:	other
Luminous efficacy:	109 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	yes
Glow wire test in accordance with IEC 60695-2-11:	without
Photobiological safety in accordance with EN 62471:	other
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABRotara-ROET/144 2500lm 830 DALI SK2

Manufacturer

HAN37570036630

GTIN4020863343539

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Beam angleMedium beam 21-40°

Outer diameter138 mm

Rated luminous flux according to IEC 62722-2-12500lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Installation height/depth140 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power23W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth94 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy109lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2500lm

Light distributorOther

Light distributionSymmetrical

Max. system performance23W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471Other

Number of poles4

ReflectorHigh gloss

Impact resistanceIK00

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityRotatable and pivotable

Cover materialWithout

Housing materialAluminum
