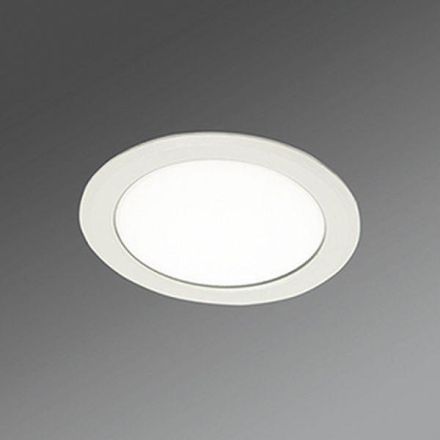

Regiolux 37670214140 loda-LDESO 1200lm 830 IP44 SK2 ws LED recessed ceiling spotlight

Regiolux 37670214140 loda-LDESO 1200lm 830 IP44 SK2 ws LED recessed ceiling spotlight

In stock

SKU: 818921

Price on request

€65.12

€0

Overview

Housing made of die-cast aluminum painted in RAL 9016 traffic white, tool-free connection of LED unit and LED socket, aluminum heat sink for effective passive cooling, plastic cover ring with opal diffuser. With fastening springs for tool-free installation, suitable for ceiling thicknesses of 10mm-20mm. Direct wide beam light distribution using diffusely beaming, opal diffuser and narrow cover ring, integrated LED driver wired for operation with light. Electrical connection via 1.0m long connection cable, 2x0.75mm.

Property	Value
Max. System power:	12 W
Rated luminous flux according to IEC 62722-2-1:	1200 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP44
Outer diameter:	204 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	105 mm
With control gear:	yes
Suitable for recessed mounting:	yes
Height/depth:	74 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	230 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp wattage:	12 W
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK00
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Luminous flux:	1200 lm
Cover material:	opal plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendant suspension:	no
Suitable for Pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	painted
Brushed surface:	no
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming Phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Light emission:	direct
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	Termination
Number of poles:	2
Connection type:	other
Luminaire luminous efficacy:	102 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	without
Photobiological safety according to EN 62471:	other
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABLoda-LDESO 1200lm 830 IP44 SK2 ws

Manufacturer

HAN37670214140

GTIN4020863333837

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Beam angleWide beam 41-80°

Outer diameter204 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11200lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth105 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power12W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth74 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy102lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1200lm

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. system performance12W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

SurfacePainted

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471Other

Number of poles2

ReflectorWithout

Impact resistanceIK00

IP protection)IP44

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
