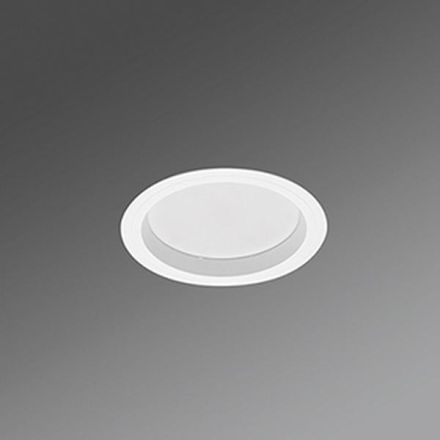

Regiolux 37672104140 relo-RDES-O/190 2000lm 840 IP44 SK2 ws LED recessed ceiling spotlight

In stock
SKU: 818803
€55.68
Into a basketIn the basketGo

Overview

Housing made of die-cast aluminum painted in RAL 9016 traffic white, wired for operation with driver, aluminum heat sink for effective passive cooling and recessed opal diffuser disc to lighten the ceiling appearance. With fastening springs for tool-free installation, suitable for ceiling thicknesses of 10mm-20mm. Direct wide beam light distribution using diffusely radiating, opal diffuser with structured surface. Integrated LED driver wired for operation with light. Electrical connection via 1.0m long connecting cable, 2x0.75mm.

PropertyValue
Max. System power:21 W
Rated luminous flux according to IEC 62722-2-1:2000 lm
Housing color:white
Housing material:aluminum
Protection class (IP):IP44
Outer diameter:190 mm
Socket:other
Light source:LED not replaceable
Protection class:II
With light source:yes
Installation height/depth:110 mm
With control gear:yes
Suitable for recessed mounting:yes
Height/depth:59 mm
With motion detector:no
Color temperature:4000 K
Nominal voltage:230 V
Suitable for lamp power:21 W
Beam angle:wide beam 41-80°
Color rendering index CRI:80-89
Suitable for ceiling mounting:yes
Light distribution:symmetrical
Operating device:LED operating device, current-controlled
Impact resistance:IK00
Luminaire with limited surface temperature 'D-mark':no
Reflector:without
Suitable for number of bulbs:1
Luminous flux:2000 lm
Cover material:Opal plastic
Covering the light with thermal insulation material possible:no
Voltage type:AC
Light color:white
Suitable for track mounting:no
Adjustability:not adjustable
Suitable for clamp mounting:no
Suitable for pendulum suspension:no
Suitable for pedestal/floor mounting:no
Suitable for truss mounting:no
With Light sensor:no
Suitable for surface mounting:yes
Suitable for cable system:no
Surface:painted
Brushed surface:no
Dimming depending on operating device:yes
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (device-integrated):no
Dimming GPRS:no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:yes
Light distributor:diffuser lens/optics/panel
Light emission:direct
Rated service life L70/B50 at 25 °C:50000 h
Protection class (NEMA):other
Rated ambient temperature according to IEC62722-2-1:25 °C
Type of wiring:Termination
Number of poles:2
Connection type:other
Luminaire luminous efficacy:96 lm/W
Suitable for computer workstations according to EN 12464-1:no
Glow wire test according to IEC 60695-2-11:without
Photobiological safety according to EN 62471:other
Color consistency (McAdam ellipse):SDCM3

Characteristics

HABRelo-RDES-O/190 2000lm 840 IP44 SK2 ws
ManufacturerRegiolux
HAN37672104140
GTIN4020863344192
Covering the luminaire with thermal insulation material possibleNo
Connection typeOther
Type of wiringDiploma
Beam angleWide beam 41-80°
Outer diameter190 mm
Rated lifetime L70/B50 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-12000lm
Rated ambient temperature according to IEC62722-2-125°C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation height/depth110 mm
Color consistency (McAdam ellipse)SDCM3
Color temperature4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for lamp power21 W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11Without
Height/Depth59 mm
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy96lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux2000lm
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Max. system performance21 W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage230V
SurfacePainted
Brushed surfaceNo
Without dimming functionYes
Photobiological safety according to EN 62471Other
Number of poles2
ReflectorWithout
Impact resistanceIK00
IP protection)IP44
Protection class (NEMA)Other
Protection classII
Voltage typeAC
AdjustabilityNot adjustable
Cover materialPlastic opal
Housing materialAluminum
