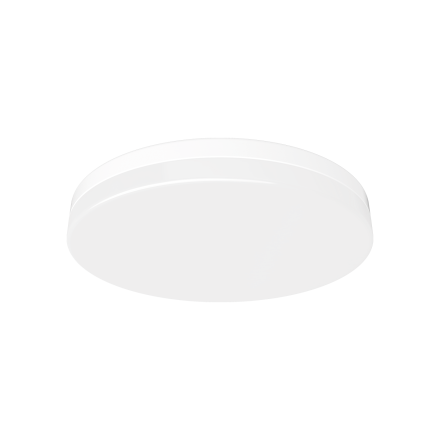

Regiolux 21905016680 turas-TUARO/500 4300 840 DALI IP40 ws LED wall / ceiling light

Regiolux 21905016680 turas-TUARO/500 4300 840 DALI IP40 ws LED wall / ceiling light

In stock

SKU: 824306

HAB:Turas-TUARO/500 4300 840 DALI IP40 ws

Manufacturer:Regiolux

HAN:21905016680

GTIN:4020863394326

Covering the luminaire with thermal insulation material possible:No

All specifications

Price on request

€197.87

€0

Into a basketIn the basketGo

Overview

Round LED wall and surface-mounted light, IP40. With a very flat, slightly rounded polycarbonate housing, including anti-theft device and insect protection ring. Housing color similar to RAL 9003. Time-saving installation is carried out using an easy-to-use assembly click system on the lower part of the light, made of sheet steel. Safe power interruption thanks to the plug and play plug contact when opening the light, diffuser with opal matt surface made of PMMA, easy to clean. In combination with individual LED lenses, a very homogeneous light is created. Electrical connection via 5-pin connection terminal with plug contact technology.

Property	Value
Max. System power:	34 W
Rated luminous flux according to IEC 62722-2-1:	4300 lm
Suitable for number of lamps:	1
Height/depth:	76 mm
Protection rating (IP):	IP40
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Material of the Housing:	Steel
Color temperature:	4000 K
Impact resistance:	IK03
Color rendering index CRI:	70-79
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Outer diameter:	500 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	10 to 35 °C
Socket:	other
Connection type:	plug-in terminal
With control gear:	yes
Cover material:	plastic opal
Light distributor:	other
Without Dimming function:	no
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	34 W
Luminaire luminous efficacy:	129 lm/W
Wiring type:	Termination
Number of poles:	5

Characteristics

HABTuras-TUARO/500 4300 840 DALI IP40 ws

Manufacturer

HAN21905016680

GTIN4020863394326

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleMedium beam 21-40°

Outer diameter500 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14300lm

Rated ambient temperature according to IEC62722-2-110 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Color temperature4000K

Color rendering index CRI70-79

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power34W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth76 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy129lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Max. system performance34W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionNo

Number of poles5

Impact resistanceIK03

IP protection)IP40

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialSteel
