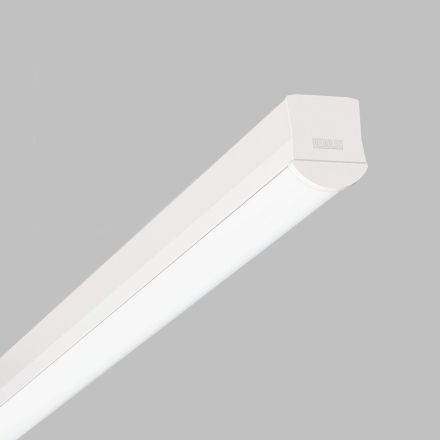

Regiolux 16171014100 ilia-ILG/0600 1900lm 830 LED light bar

Regiolux 16171014100 ilia-ILG/0600 1900lm 830 LED light bar

In stock

SKU: 818850

Price on request

€70.60

€0

Overview

Housing made of profiled sheet steel, torsion-resistant, tapered lengthways, the profiling of the upper part forms a cable duct for sheathed cables up to 5 x 1.5 mm², free-radiating, electrical connection via 3-pin connection terminal with plug-in contact technology.

Property	Value
Max. System power:	20 W
Nominal voltage:	230 V
Rated luminous flux according to IEC 62722-2-1:	2100 lm
Color temperature:	3000 K
With control gear:	yes
With light source:	yes
Width:	56 mm
Length:	580 mm
Socket:	without
Housing color:	white
Suitable for Number of lamps:	1
Operating device:	LED operating device, current-controlled
Protection type (IP):	IP20
Protection class:	I
Lamp:	LED not replaceable
Electrical connection with plug-in system:	no
With switch:	no
Material:	steel
Luminaire with limited surface temperature 'D-mark':	no
Covering of the lamp with thermal insulation material possible:	no
Suitable for emergency lighting:	no
Voltage type:	AC
Light color:	white
Color rendering index CRI:	80-89
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Rated service life L80/B10 at 25 °C:	50000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
With motion detector:	no
Suitable for lamp power:	20 W
Height/depth:	66 mm
Type of wiring:	Termination
Number of poles:	3
Connection type:	Plug terminal

Characteristics

With switchNo

HABIlia-ILG/0600 1900lm 830

Manufacturer

HAN16171014100

GTIN4020863322640

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12100lm

Operating deviceLED control gear current controlled

Width56 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Electrical connection with plug-in systemNo

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power20W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth66 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Light distributorDiffuser lens/optics/panel

Length580 mm

Max. system performance20W

With operating deviceYes

With motion detectorNo

With light sourceYes

Nominal voltage230V

Without dimming functionYes

Number of poles3

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

MaterialSteel
