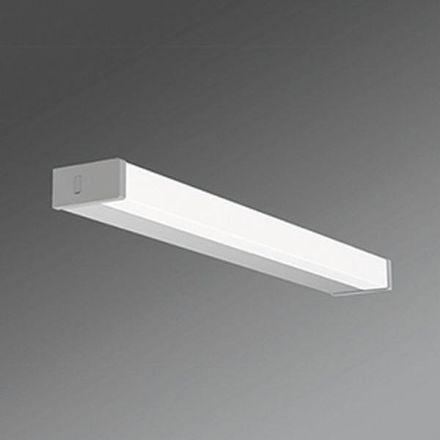

Regiolux 16161634125 smile-SLG/0600 1000 830 ET LED mirror light LB20

Regiolux 16161634125 smile-SLG/0600 1000 830 ET LED mirror light LB20

In stock

SKU: 818411

Price on request

€116.73

€0

Overview

Housing made of anodized extruded aluminum profile, screwable white aluminum painted plastic end faces, can be attached vertically or horizontally as a wall mounting, with integrated cable duct and cable entry in accordance with protection class. Direct/indirect light distribution using an opal diffuser made of ISCC-certified TRUCIRCLET polycarbonate with a smooth surface. Electrical connection via 3-pin connection terminal with plug-in contact technology.

Property	Value
Max. System power:	9 W
Rated luminous flux according to IEC 62722-2-1:	1000 lm
Suitable for number of lamps:	1
Length:	600 mm
Width:	47 mm
Height/depth:	82 mm
Protection class (IP):	IP44
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	Aluminium
Housing material:	Aluminium
Color temperature:	3000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	10 to 35 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	plastic opal
Light distributor:	Diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for Light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Suitable for lamp power:	9 W
Luminaire luminous efficacy:	116 lm/W
Wiring type:	Termination
Number of poles:	3

Characteristics

HABSmile-SLG/0600 1000 830 ET

Manufacturer

HAN16161634125

GTIN4020863321872

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11000lm

Rated ambient temperature according to IEC62722-2-110 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width47 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power9W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorAluminum

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth82 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy116lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length600 mm

Max. system performance9W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK02

IP protection)IP44

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
