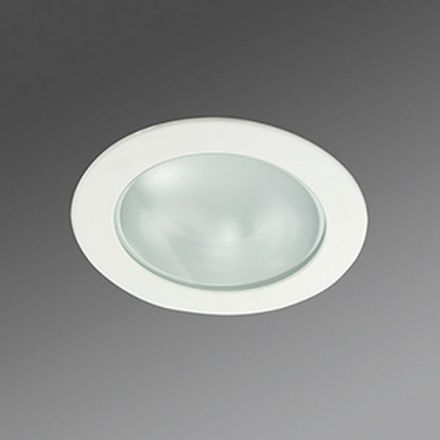

Regiolux 36941356625 doma-DESSB 195 2300lm 840 DALI IP54 SK2 LED recessed downlight

Regiolux 36941356625 doma-DESSB 195 2300lm 840 DALI IP54 SK2 LED recessed downlight

In stock

SKU: 819370

Price on request

€182.56

€0

Overview

Housing made of sheet steel with cover ring made of die-cast aluminum, painted pebble gray similar to Ral 7032, with translucent glass pane made of safety glass, wired for operation with driver, aluminum heat sink for effective passive cooling. With fastening springs for tool-free installation, suitable for ceiling thicknesses of 10mm-25mm. Direct wide beam light distribution using high-gloss, piece-anodized reflector made of pure aluminum, with translucent cover made of safety glass. External driver wired for operation with luminaire. Electrical connection and connection of the control line via 5-pin connection terminal with plug-in contact technology.

Property	Value
Max. System power:	23 W
Rated luminous flux according to IEC 62722-2-1:	2500 lm
Housing color:	gray
Housing material:	steel
Protection class (IP):	IP54
Outer diameter:	246 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	165 mm
With control gear:	yes
Suitable for recessed mounting:	yes
Height/depth:	113 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	230 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp wattage:	23 W
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high-gloss
Suitable for number of bulbs:	1
Luminous flux:	2500 lm
Cover material:	transparent glass
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendant suspension:	no
Suitable for Pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	painted
Brushed surface:	no
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming Phase control:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Reflector
Light emission:	direct
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	Termination
Number of poles:	5
Connection type:	Plug terminal
Luminaire luminous efficacy:	109 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	without
Photobiological safety according to EN 62471:	RG1
Colour consistency (McAdam ellipse):	other

Characteristics

HABDoma-DESSB 195 2300lm 840 DALI IP54 SK2

Manufacturer

HAN36941356625

GTIN4020863354306

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Outer diameter246 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12500lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Installation height/depth165 mm

Color consistency (McAdam ellipse)Other

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power23W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorGray

Glow wire test according to IEC 60695-2-11Without

Height/Depth113 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy109lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2500lm

Light distributorReflector

Light distributionSymmetrical

Max. system performance23W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

SurfacePainted

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG1

Number of poles5

ReflectorHigh gloss

Impact resistanceIK02

IP protection)IP54

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialSteel
