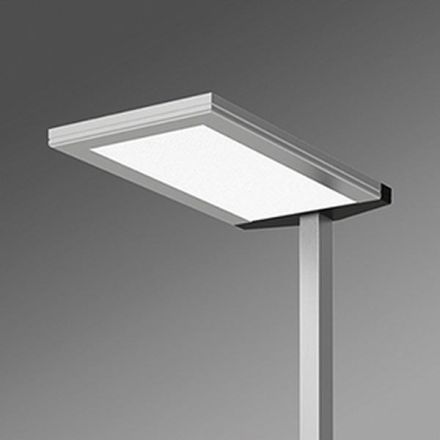

Regiolux 43711308175 visula-VSSIMP 15700lm 840 M5S5 DALI LED floor lamp

Regiolux 43711308175 visula-VSSIMP 15700lm 840 M5S5 DALI LED floor lamp

In stock

SKU: 819199

Price on request

€1,231.64

€0

Overview

Ultra-flat lamp head, extruded aluminum profile, natural anodized, standpipe extruded aluminum profile, natural anodized, switch black, built into the inside of the standpipe, LED can be switched separately - direct/indirect, base with high stability, light distribution direct/indirect beam, direct component 13%, indirect component 87%, glare-free direct component using microprism panel made of PMMA and clear PMMA panel for the indirect light component, for computer workstations, all-round glare protection in accordance with the current standard DIN-EN 12464-1. Connecting cable 2.85 m, black, with safety plug. The lamp has a master unit with built-in LC-OM DALIeco control unit and LC-OM DALIeco LS/PD LI sensor, for daylight and presence-dependent control. Simple setpoint storage by double pressing. Separately dimmable using a button.

Property	Value
Max. System power:	100 W
Color temperature:	4000 K
With light source:	yes
Length:	680 mm
Width:	330 mm
Suitable for number of light sources:	1
With dimmer:	yes
Light source:	LED not replaceable
Light distribution:	symmetrical
Protection class:	I
With motion detector:	yes
Light emission:	direct/indirect
Suitable for computer workstations in accordance with EN 12464-1:	yes
Socket:	without
Nominal voltage:	230 V
Number of lamp heads:	1
Operating device:	LED operating device, current-controlled
With operating device:	yes
Movable lamp heads:	no
Housing color:	aluminum
Direct/indirect components separate adjustable:	yes
Adjustable:	no
With switch:	no
Material:	aluminium
Material of cover:	structured plastic
Design of grid:	without
With reflector:	no
With presence detector:	yes
With light sensor:	yes
Type of voltage:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Diffuser lens/optics/panel
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	100 W
Rated luminous flux according to IEC 62722-2-1:	15800 lm
Light color:	white
Color rendering index CRI:	80-89
Height/depth:	1950 mm

Characteristics

With switchNo

HABVisula-VSSIMP 15700lm 840 M5S5 DALI

Manufacturer

HAN43711308175

GTIN4020863330805

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-115800lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width330 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Direct/indirect components can be controlled separatelyYes

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power100W

Suitable for number of lamps1

Housing colorAluminum

Height/Depth1950 mm

AdjustableNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length680 mm

Max. system performance100W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

Nominal voltage230V

Without dimming functionNo

Protection classI

Voltage typeAC

MaterialAluminum

Cover materialPlastic structured
