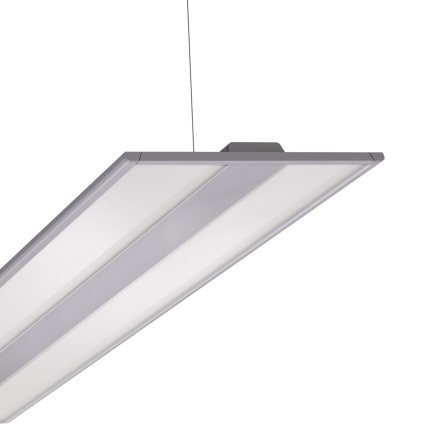

Regiolux 46202016175 kayak-KYHI/1200 4900 840 DALI sg LED pendant light

Regiolux 46202016175 kayak-KYHI/1200 4900 840 DALI sg LED pendant light

In stock

SKU: 824398

Price on request

€626.76

€0

Overview

Particularly flat luminaire housing, painted extruded aluminum profile, visible height 10/24mm, direct/indirect light distribution, direct component using microprism panel made of PMMA, long-term UV-resistant, homogeneous light emission through lateral LED light coupling in highly effective light guide panel and semi-diffuse white reflection layers, with special precision technology for defined ceiling illumination, for computer workstations, all-round glare protection in accordance with the current standard DIN-EN 12464-1. LED driver design integrated. Electrical connection via integrated transparent connection cable 5x0.75mm, length 1900mm, cable ends stripped.

Property	Value
Max. System power:	36 W
Rated luminous flux according to IEC 62722-2-1:	4900 lm
Color temperature:	4000 K
Length:	1250 mm
Width:	321 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	24 mm
Protection rating (IP):	IP20
Protection class:	I
Pendant length:	150 to 1900 mm
Operating device:	LED operating device, current-controlled
Material of the housing:	Aluminum
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With operating device:	yes
Nominal voltage:	230 V
Suspension included:	yes
Cover material:	Structured plastic
Light source:	LED not replaceable
Housing color:	gray
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	yes
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming programmable:	yes
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	other
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	36 W
Type of wiring:	Termination
Number of poles:	5
Connection type:	other

Characteristics

HABKayak-KYHI/1200 4900 840 DALI sg

Manufacturer

HAN46202016175

GTIN4020863378234

Suspension includedYes

Connection typeOther

Type of wiringDiploma

Execution of the gridWithout

Rated luminous flux according to IEC 62722-2-14900lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width321 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Direct/indirect components can be controlled separatelyNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power36W

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Housing colorGray

Glow wire test according to IEC 60695-2-11Without

Height/Depth24 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1250 mm

Max. system performance36W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionNo

Pendulum length150 to 1900 mm

Number of poles5

ReflectorWithout

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic structured

Housing materialAluminum
