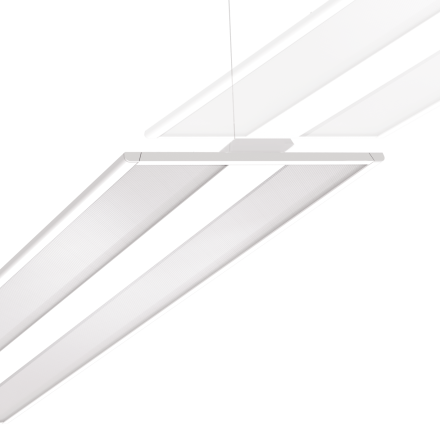

Regiolux 46255026170 kayak-KYHIL/1500 5900 830 DALI vw LED pendant light

Regiolux 46255026170 kayak-KYHIL/1500 5900 830 DALI vw LED pendant light

In stock

SKU: 824419

Price on request

€630.87

€0

Overview

Particularly flat luminaire housing, painted extruded aluminum profile, visible height 10/24mm, prepared for light strip installation, direct/indirect light distribution, direct component using microprism disc made of PMMA, long-term UV-resistant, homogeneous light emission through lateral LED light coupling in highly effective light guide disc and semi-diffuse white reflection layers, with special precision technology for defined ceiling illumination, for computer workstations, all-round glare protection in accordance with the current standard DIN-EN 12464-1. Electrical connection via start light with 5-pin connection cable and light strip lights with through-wiring.

Property	Value
Max. System power:	48 W
Rated luminous flux according to IEC 62722-2-1:	5900 lm
Color temperature:	3000 K
Length:	1558 mm
Width:	321 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	24 mm
Protection rating (IP):	IP20
Protection class:	I
Pendant length:	150 to 1900 mm
Operating device:	LED operating device, current-controlled
Material of the housing:	Aluminum
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With operating device:	yes
Nominal voltage:	230 V
Suspension included:	yes
Cover material:	Structured plastic
Light source:	LED not replaceable
Housing color:	white
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	yes
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming programmable:	yes
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	other
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	48 W
Type of wiring:	Termination
Number of poles:	5
Connection type:	other

Characteristics

HABKayak-KYHIL/1500 5900 830 DALI vw

Manufacturer

HAN46255026170

GTIN4020863378524

Suspension includedYes

Connection typeOther

Type of wiringDiploma

Execution of the gridWithout

Rated luminous flux according to IEC 62722-2-15900lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width321 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Direct/indirect components can be controlled separatelyNo

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power48W

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth24 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1558 mm

Max. system performance48W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionNo

Pendulum length150 to 1900 mm

Number of poles5

ReflectorWithout

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic structured

Housing materialAluminum
