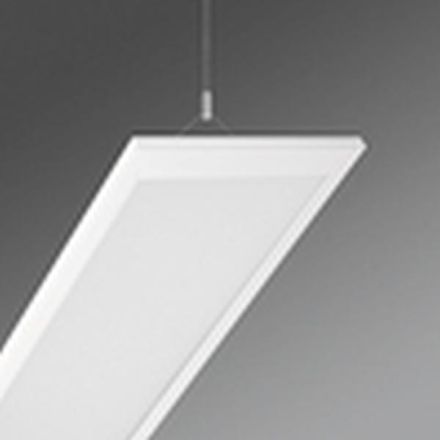

Regiolux 60204034150 panella-PHMPI/1200 4300lm 840 ET SK2 vw LED pendant light

Regiolux 60204034150 panella-PHMPI/1200 4300lm 840 ET SK2 vw LED pendant light

In stock

SKU: 819549

Price on request

€198.63

€0

Overview

Extremely flat white powder-coated aluminum frame, height 13mm, direct light distribution using a micro-prism screen, for computer workstations in accordance with the current DIN-EN 12464-1 standard, indirect light distribution with a discreetly diffused screen. External LED driver integrated in the canopy. Electrical connection via integrated white connecting cable 3x0.75mm with plug-in system.

Property	Value
Max. System power:	38 W
Rated luminous flux according to IEC 62722-2-1:	5400 lm
Color temperature:	4000 K
Length:	1195 mm
Width:	295 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	13 mm
Protection rating (IP):	IP20
Protection class:	II
Pendant length:	150 to 1600 mm
Operating device:	not required
Material of the housing:	aluminium
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With operating device:	yes
Nominal voltage:	230 V
Suspension included:	no
Material of the cover:	structured plastic
Light source:	LED not replaceable
Housing color:	white
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	yes
Light distributor:	other
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp wattage:	29 to 38 W
Rated service life L70/B50 at 25 °C:	100000 h
Wiring type:	Termination
Number of poles:	3
Connection type:	other

Characteristics

HABPanella-PHMPI/1200 4300lm 840 ET SK2 vw

Manufacturer

HAN60204034150

GTIN4020863350896

Suspension includedNo

Connection typeOther

Type of wiringDiploma

Execution of the gridWithout

Rated lifetime L70/B50 at 25 °C100000 hours

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-15400lm

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1Yes

Width295 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power29 to 38 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth13 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1195 mm

Max. system performance38W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionYes

Pendulum length150 to 1600 mm

Number of poles3

ReflectorWithout

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic structured

Housing materialAluminum
