Regiolux 60314024160 stail-SHXI/1500-2 6300lm 840 LED pendant light

Regiolux 60314024160 stail-SHXI/1500-2 6300lm 840 LED pendant light

In stock

SKU: 819137

Price on request

€385.91

€0

Overview

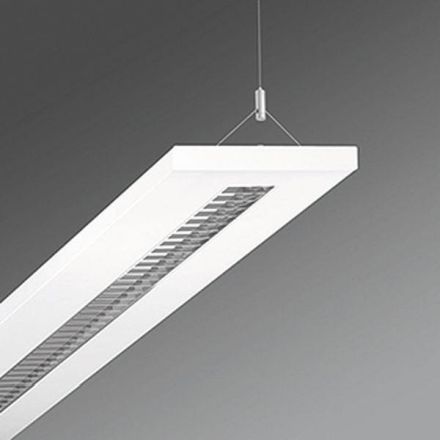

Sheet steel housing, flat rectangular cross-section, visible height 26mm, end faces made of steel, direct/indirect light distribution via reflection-enhanced MIRO-SILVER® aluminum micro parabolic louvre, satin finish with low-cross-section slats, for computer workstations, 65° < 1000 cd/m² all-round glare control in accordance with the current standard DIN-EN 12464-1, self-locking, electrical connection via integrated transparent connecting cable 3x0.75mm², length 1900mm, cable ends stripped.

Property	Value
Max. System power:	50 W
Rated luminous flux according to IEC 62722-2-1:	6800 lm
Color temperature:	4000 K
Length:	1540 mm
Width:	198 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	37 mm
Protection class (IP):	IP20
Protection class:	I
Pendant length:	150 to 1900 mm
Operating device:	LED operating device, current-controlled
Material of the housing:	steel
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With operating device:	yes
Nominal voltage:	230 V
Suspension included:	no
Material of the cover:	without cover
Light source:	LED not replaceable
Housing color:	white
Grid design:	matt
Reflector:	without
Suitable for light strip configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	yes
Light distributor:	other
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for Lamp power:	50 W
Wiring type:	Termination
Number of poles:	3
Connection type:	other

Characteristics

HABStail-SHXI/1500-2 6300lm 840

Manufacturer

HAN60314024160

GTIN4020863309474

Suspension includedNo

Connection typeOther

Type of wiringDiploma

Execution of the gridFrosted

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-16800lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width198 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power50W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth37 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1540 mm

Max. system performance50W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionYes

Pendulum length150 to 1900 mm

Number of poles3

ReflectorWithout

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialWithout cover

Housing materialSteel
