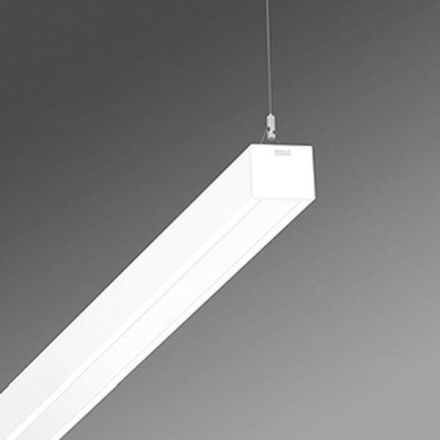

Regiolux 60513024180 hokal-HLHIG/1500 3500lm 840 LED pendant light

Regiolux 60513024180 hokal-HLHIG/1500 3500lm 840 LED pendant light

In stock

SKU: 819162

Price on request

€277.52

€0

Overview

Sheet steel housing in square design, prepared for attaching end faces or luminaire connectors made of steel, direct/indirect light distribution, glare control through diffusely shining, satin-finished PC profile, optically continuous diffuser when installed in light strips, electrical connection via 3-pin connection terminal with plug-in contact technology.

Property	Value
Max. System power:	30 W
Rated luminous flux according to IEC 62722-2-1:	3500 lm
Color temperature:	4000 K
Length:	1476 mm
Width:	85 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	72 mm
Protection rating (IP):	IP20
Protection class:	I
Pendant length:	150 to 1900 mm
Operating device:	LED operating device, current-controlled
Material of the housing:	steel
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With operating device:	yes
Nominal voltage:	230 V
Suspension included:	no
Cover material:	plastic, opal
Light source:	LED not replaceable
Housing color:	white
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	yes
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	30 W
Rated service life L70/B50 at 25 °C:	70000 h
Type of wiring:	suitable for through wiring
Number of poles:	3
Connection type:	Plug-in terminal

Characteristics

HABHokal-HLHIG/1500 3500lm 840

Manufacturer

HAN60513024180

GTIN4020863319107

Suspension includedNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L70/B50 at 25 °C70000 hours

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13500lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width85 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power30W

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth72 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length1476 mm

Max. system performance30W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionYes

Pendulum length150 to 1900 mm

Number of poles3

ReflectorWithout

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialSteel
