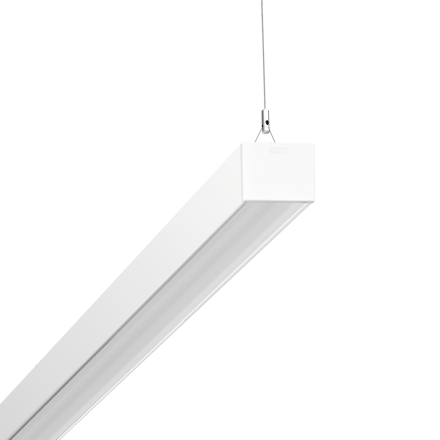

Regiolux 60513026690 hokal-HLHIMP/1500 8600 840 DALI vw LED pendant light

In stock
SKU: 824423
€359.90
Into a basketIn the basketGo

Overview

Sheet steel housing in square design, prepared for attaching die-cast aluminum end faces or steel luminaire connectors, homogeneous direct/indirect light distribution for standard-compliant suitability for computer workstations in accordance with DIN-EN 12464-1, glare control through microprism panel with special multilayer technology and optimized light-directing film, electrical connection via 5-pin connection terminal with plug-in contact technology. Includes through-wiring.

PropertyValue
Max. System power:64 W
Rated luminous flux according to IEC 62722-2-1:8600 lm
Color temperature:4000 K
Length:1408 mm
Width:85 mm
Socket:without
Suitable for number of bulbs:1
Height/depth:72 mm
Protection rating (IP):IP20
Protection class:I
Pendant length:400 to 1900 mm
Operating device:LED operating device, current-controlled
Material of the housing:Steel
Suitable for computer workstations in accordance with EN 12464-1:yes
With light source:yes
With operating device:yes
Nominal voltage:230 V
Suspension included:no
Material of the cover:Structured plastic
Light source:LED not replaceable
Housing color:white
Design of the grid:without
Reflector:without
Suitable for light strip configuration:yes
Direct/indirect components separately adjustable:no
Light distribution:symmetrical
Light emission:direct/indirect
Impact resistance:IK02
Luminaire with limited surface temperature 'D-mark':no
Color rendering index CRI:80-89
Suitable for emergency lighting:no
Light color:white
Voltage type:AC
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:yes
Dimming DMX:no
Dimming programmable:yes
Dimming DSI:no
Dimming RF:no
Dimming potentiometer (device-integrated):no
Dimming GPRS:no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Rated service life L80/B10 at 25 °C:50000 h
Without dimming function:no
Light distributor:other
Protection class (NEMA):other
Glow wire test according to IEC 60695-2-11:without
Suitable for Lamp power:64 W
Wiring type:suitable for through wiring
Number of poles:5
Conductor cross-section:1.50 mm²
Connection type:Plug terminal

Characteristics

HABHokal-HLHIMP/1500 8600 840 DALI vw
ManufacturerRegiolux
HAN60513026690
GTIN4020863319244
Suspension includedNo
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-18600lm
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1Yes
Width85 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableYes
Direct/indirect components can be controlled separatelyNo
Color temperature4000K
Color rendering index CRI80-89
VersionWithout
Suitable for lamp power64W
Suitable for number of lamps1
Suitable for light strip configurationYes
Suitable for emergency lightingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11Without
Height/Depth72 mm
Conductor cross-section1.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorOther
Light distributionSymmetrical
Length1408 mm
Max. system performance64W
With operating deviceYes
With light sourceYes
Nominal voltage230V
Without dimming functionNo
Pendulum length400 to 1900 mm
Number of poles5
ReflectorWithout
Impact resistanceIK02
IP protection)IP20
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic structured
Housing materialSteel
