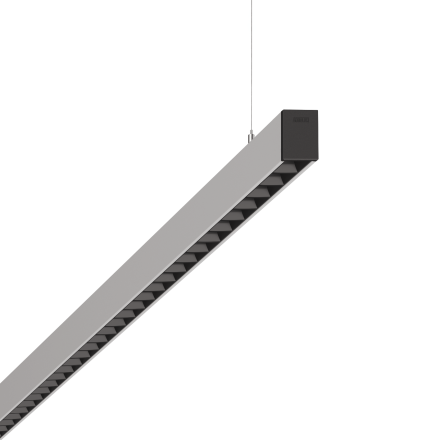

Regiolux 60615035675 agila-AGHIR/1500 4700 830 DA easy01C sg LED pendant light

Regiolux 60615035675 agila-AGHIR/1500 4700 830 DA easy01C sg LED pendant light

In stock

SKU: 820750

Price on request

€494.02

€0

Overview

Housing made of sheet steel in a graceful rectangular design, front sides made of black die-cast aluminum, light distribution direct/indirect beam, direct component using 80° clear LED lens with black micro single grid, homogeneous indirect component with opal PMMA panel, for computer workstations, all-round glare protection in accordance with the current DIN-EN 12464-1 standard. Netlife master light for wireless dimming and control with built-in Bluetooth controller, without sensor, up to 32 operating devices can be controlled, configuration and operation via Osram BT apps. Perfect for renovations with only 3-pin feeds. Sensor removal set for presence and daylight control, must be ordered separately. Electrical connection via integrated transparent connection cable 5x0.75mm, length 1900mm, wired ready for connection.

Property	Value
Max. System power:	35 W
Rated luminous flux according to IEC 62722-2-1:	4700 lm
Color temperature:	3000 K
Length:	1411 mm
Width:	51 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	69 mm
Protection rating (IP):	IP20
Protection class:	I
Pendant length:	150 to 1900 mm
Operating device:	LED operating device, current-controlled
Material of the housing:	steel
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With operating device:	yes
Nominal voltage:	230 V
Suspension included:	no
Material of the cover:	without cover
Light source:	LED not replaceable
Housing color:	gray
Design of the grid:	other
Reflector:	without
Suitable for light strip configuration:	yes
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming programmable:	yes
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	no
Light distributor:	other
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for Lamp power:	35 W
Wiring type:	Termination
Number of poles:	5
Conductor cross-section:	0.75 mm²
Connection type:	other

Characteristics

HABAgila-AGHIR/1500 4700 830 DA easy01C sg

Manufacturer

HAN60615035675

GTIN4020863422098

Suspension includedNo

Connection typeOther

Type of wiringDiploma

Execution of the gridOther

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14700lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width51 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableYes

Direct/indirect components can be controlled separatelyNo

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power35W

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Housing colorGray

Glow wire test according to IEC 60695-2-11Without

Height/Depth69 mm

Conductor cross-section0.75 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1411 mm

Max. system performance35W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionNo

Pendulum length150 to 1900 mm

Number of poles5

ReflectorWithout

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialWithout cover

Housing materialSteel

Regiolux 60615035675 agila-AGHIR/1500 4700 830 DA easy01C sg LED pendant light

Price on request

€494.02

€0
