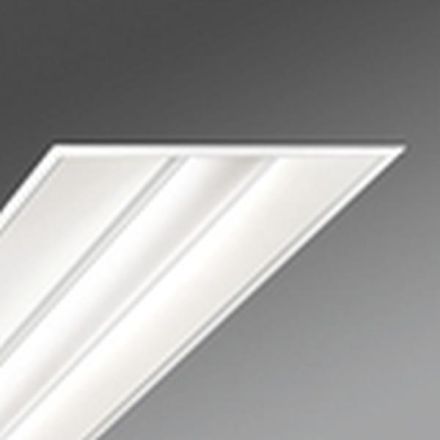

Regiolux 50806116670 teno-TNEMP/625-1250 7300lm 840 DALI vw LED recessed luminaire

Regiolux 50806116670 teno-TNEMP/625-1250 7300lm 840 DALI vw LED recessed luminaire

In stock

SKU: 819599

Price on request

€489.91

€0

Overview

Sheet steel housing suitable for ceilings with visible T-rails, concealed symmetrical rail constructions and cut-out ceilings, light distribution directly radiating using a micro-prism panel made of PMMA, a soft light is transmitted to the outside with frosted diffusers, light color neutral white (840) with very good color consistency and high color rendering Ra>80, for computer workstations, 65° < 3000 cd/m² all-round glare protection according to the current standard DIN-EN 12464-1, electrical connection via 5-pin connection terminal with plug-in contact technology.

Property	Value
Max. System power:	62 W
Rated luminous flux according to IEC 62722-2-1:	7300 lm
Suitable for number of lamps:	1
Length:	1247 mm
Width:	622 mm
Height/depth:	100 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	plastic transparent
Light distributor:	other
Installation height/depth:	250 mm
Without dimming function:	no
Installation width:	1191 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for strip lighting configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	585 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	62 W
Luminaire luminous efficacy:	118 lm/W
Type of wiring:	Termination
Number of poles:	5

Characteristics

HABTeno-TNEMP/625-1250 7300lm 840 DALI vw

Manufacturer

HAN50806116670

GTIN4020863355716

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-17300lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width622 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Installation width1191 mm

Installation height/depth250 mm

Installation length585 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power62W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth100 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy118lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1247 mm

Max. system performance62W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionNo

Number of poles5

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic transparent

Housing materialSteel
