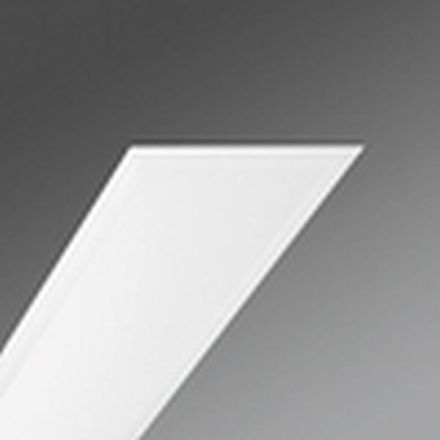

Regiolux 60133036610 panella-PEO/312-1250 3900lm 830 DALI LED recessed luminaire

Regiolux 60133036610 panella-PEO/312-1250 3900lm 830 DALI LED recessed luminaire

In stock

SKU: 819556

Price on request

€174.47

€0

Overview

Extremely flat aluminum frame powder-coated white, height 13mm, galvanized sheet steel cover, suitable for ceilings with visible T-rails, direct light distribution via opal diffuser made of acrylic glass, external Dali driver, electrical connection via connection box with 150mm long connection cable 2x0.5mm² including coupling plug, 5-pin plug-in terminal for cable cross-sections up to 5x2.5mm² and strain relief, suitable for through-wiring.

Property	Value
Max. System power:	34 W
Rated luminous flux according to IEC 62722-2-1:	3900 lm
Suitable for number of lamps:	1
Length:	1247 mm
Width:	310 mm
Height/depth:	13 mm
Protection rating (IP):	IP40
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK00
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With control gear:	yes
Cover material:	opal plastic
Light distributor:	diffuser lens/optics/panel
Installation height/depth:	150 mm
Without dimming function:	no
Installation width:	298 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	1235 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With Air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Phase control dimming:	no
Programmable dimming:	yes
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Dimming depending on operating device:	yes
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	34 W
Luminaire luminous efficacy:	113 lm/W
Type of wiring:	Termination
Number of poles:	5

Characteristics

HABPanella-PEO/312-1250 3900lm 830 DALI

Manufacturer

HAN60133036610

GTIN4020863350803

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleMedium beam 21-40°

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13900lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width310 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Installation width298 mm

Installation height/depth150 mm

Installation length1235 mm

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power34W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth13 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy113lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length1247 mm

Max. system performance34W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionNo

Number of poles5

Impact resistanceIK00

IP protection)IP40

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
