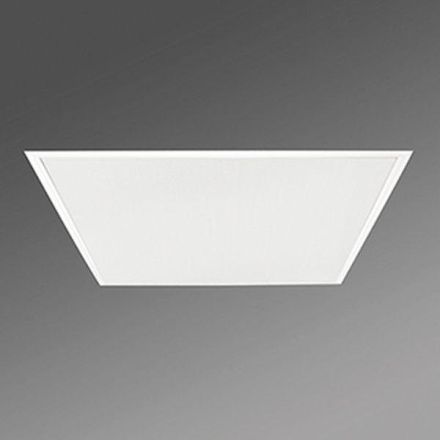

Regiolux 60143036650 lowea-LOEMP/600 4500 830 DALI SK2 vw LED recessed luminaire

Regiolux 60143036650 lowea-LOEMP/600 4500 830 DALI SK2 vw LED recessed luminaire

In stock

SKU: 824606

Price on request

€119.05

€0

Overview

Suitable for ceilings with visible T-rails, flat aluminum frame powder-coated white, sheet steel housing, LED backlight lighting technology, direct light distribution using non-yellowing microprismatic PMMA pane and individual lenses, perfect for computer workstations, UGR19, 65°< 3000 cd/m², all-round glare protection in accordance with the current standard DIN-EN 12464-1, including Dali driver, flicker < 5%, electrical connection via connection box with 150mm long connection cable 2x0.5mm² including coupling plug, 5-pin plug-in terminal for cable cross-sections up to 5x2.5mm² and strain relief, suitable for through-wiring. Protection class: IP20 /IP40 room side.

Property	Value
Max. System power:	39 W
Rated luminous flux according to IEC 62722-2-1:	4500 lm
Suitable for number of lamps:	1
Length:	595 mm
Width:	595 mm
Height/depth:	33 mm
Protection rating (IP):	other
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-10 to 35 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Material of Cover:	Structured plastic
Light distributor:	other
Installation height/depth:	145 mm
Without dimming function:	no
Installation width:	623 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed installation:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for strip lighting configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	623 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	39 W
Luminaire luminous efficacy:	116 lm/W
Type of wiring:	Termination
Number of poles:	5

Characteristics

HABLowea-LOEMP/600 4500 830 DALI SK2 vw

Manufacturer

HAN60143036650

GTIN4020863425129

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14500lm

Rated ambient temperature according to IEC62722-2-1-10 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width595 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Installation width623 mm

Installation height/depth145 mm

Installation length623 mm

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power39 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth33 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy116lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length595 mm

Max. system performance39 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionNo

Number of poles5

Impact resistanceIK02

IP protection)Other

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic structured

Housing materialAluminum
