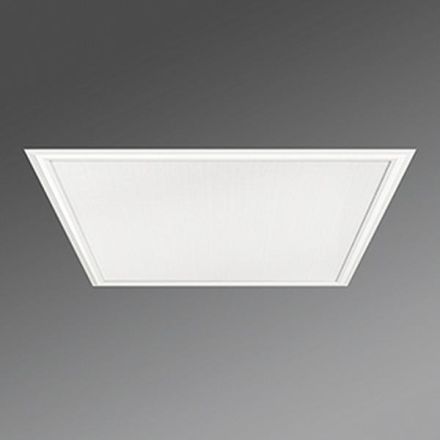

Regiolux 60154036650 panella-PEMP/625 3800lm 840 DALI IP40 LED recessed luminaire

Regiolux 60154036650 panella-PEMP/625 3800lm 840 DALI IP40 LED recessed luminaire

In stock

SKU: 818841

Price on request

€160.15

€0

Overview

Extremely flat aluminum frame, white powder-coated, height 13mm, galvanized sheet steel cover, suitable for ceilings with visible T-rails, direct light distribution using micro-prism screen, for computer workstations, 65° < 3000 cd/m² all-round glare protection according to the current standard DIN-EN 12464-1, external Dali driver, electrical connection via connection box with 150mm long connection cable 2x0.5mm² including coupling plug, 5-pin plug terminal for cable cross-sections up to 5x2.5mm² and strain relief, suitable for through-wiring. Note on protection class: IP20 for surface mounting and IP40 for lay-in mounting.

Property	Value
Max. System power:	29 W
Rated luminous flux according to IEC 62722-2-1:	4100 lm
Suitable for number of lamps:	1
Length:	622 mm
Width:	622 mm
Height/depth:	13 mm
Protection rating (IP):	other
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	plastic structured
Light distributor:	other
Installation height/depth:	100 mm
Without dimming function:	no
Installation width:	612 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Installation length:	612 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	29 W
Luminaire luminous efficacy:	140 lm/W
Type of wiring:	Termination
Number of poles:	5

Characteristics

HABPanella-PEMP/625 3800lm 840 DALI IP40

Manufacturer

HAN60154036650

GTIN4020863337774

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14100lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width622 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Installation width612 mm

Installation height/depth100 mm

Installation length612 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power29 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth13 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy140lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length622 mm

Max. system performance29 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionNo

Number of poles5

Impact resistanceIK02

IP protection)Other

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic structured

Housing materialAluminum
