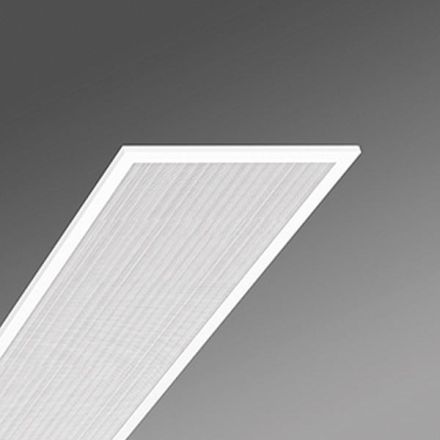

Regiolux 60184034150 lowea-LOEMP/312-1250 4800-3900 840ETM vw LED recessed light

Regiolux 60184034150 lowea-LOEMP/312-1250 4800-3900 840ETM vw LED recessed light

In stock

SKU: 824612

Price on request

€110.84

€0

Overview

Suitable for ceilings with visible T-rails, flat aluminum frame powder-coated white, sheet steel housing, LED backlight lighting technology, direct light distribution using non-yellowing microprismatic PMMA pane and individual lenses, perfect for computer workstations, UGR19, 65°< 3000 cd/m², all-round glare protection in accordance with the current standard DIN-EN 12464-1, including multi-lumen driver with 4 adjustable light outputs, flicker < 5%, flexible 40cm connecting cable wired to the luminaire using a plug system. Protection class: IP20 / IP40 on the room side.

Property	Value
Max. System power:	40 W
Rated luminous flux according to IEC 62722-2-1:	4800 lm
Suitable for number of lamps:	1
Length:	1250 mm
Width:	310 mm
Height/depth:	35 mm
Protection rating (IP):	other
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-10 to 35 °C
Socket:	other
With operating device:	yes
Cover material:	Structured plastic
Light distributor:	other
Installation height/depth:	145 mm
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming Phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	31 to 40 W
Luminaire luminous efficacy:	125 lm/W
Type of wiring:	Termination
Number of poles:	3

Characteristics

HABLowea-LOEMP/312-1250 4800-3900 840ETM vw

Manufacturer

HAN60184034150

GTIN4020863448555

Covering the luminaire with thermal insulation material possibleNo

Type of wiringDiploma

Execution of the gridWithout

Beam angleMedium beam 21-40°

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14800lm

Rated ambient temperature according to IEC62722-2-1-10 to 35 °C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1Yes

Width310 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth145 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power31 to 40 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth35 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy125lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1250 mm

Max. system performance40W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK02

IP protection)Other

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic structured

Housing materialAluminum
