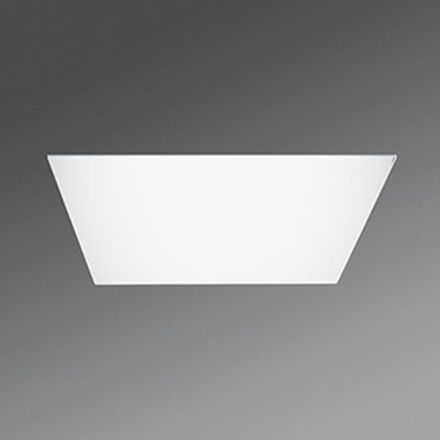

Regiolux 72205014110 planara-PNEG/625 IP54 4000lm 840 LED recessed luminaire

Regiolux 72205014110 planara-PNEG/625 IP54 4000lm 840 LED recessed luminaire

In stock

SKU: 818356

Price on request

€236.91

€0

Overview

Sheet steel housing suitable for ceilings with visible T-rails, protection class refers to visible luminaire surface, direct light distribution via diffusely radiating, satin diffuser, electrical connection via 3-pin connection terminal with plug contact technology.

Property	Value
Max. System power:	28 W
Rated luminous flux according to IEC 62722-2-1:	4500 lm
Suitable for number of lamps:	1
Length:	622 mm
Width:	622 mm
Height/depth:	81 mm
Protection rating (IP):	IP54
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With control gear:	yes
Cover material:	opal plastic
Light distributor:	diffuser lens/optics/panel
Installation height/depth:	180 mm
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device-integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Rated service life L90/B10 at 25 °C:	50000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	28 W
Luminaire luminous efficacy:	160 lm/W
Wiring type:	Termination
Number of poles:	3

Characteristics

Rated service life L90/B10 at 25 °C50000 h

HABPlanara-PNEG/625 IP54 4000lm 840

Manufacturer

HAN72205014110

GTIN4020863266272

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleMedium beam 21-40°

Rated luminous flux according to IEC 62722-2-14500lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width622 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth180 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power28W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth81 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy160lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length622 mm

Max. system performance28W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK03

IP protection)IP54

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialSteel
