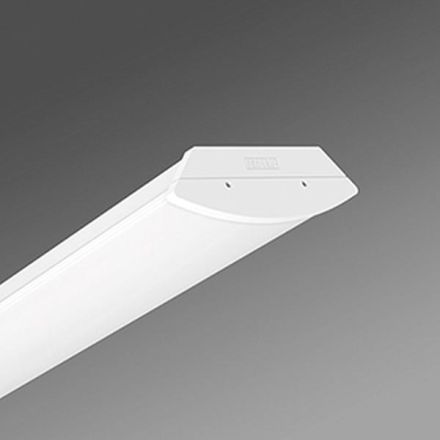

Regiolux 21665214180 pro-LPAK/1500 5400lm 840 ET LED luminaire LB20

Regiolux 21665214180 pro-LPAK/1500 5400lm 840 ET LED luminaire LB20

In stock

SKU: 819293

Price on request

€218.66

€0

Overview

Luminaire body made of sheet steel profile, trapezoidal bent, white end faces made of polycarbonate, cable entries near the center of the lamp, diffuser fastening by snapping in, direct diffuse light distribution using diffuser profile made of white-opal acrylic glass, convex with internal longitudinal prisms, attachable white end faces made of polycarbonate, UV-stabilized, electrical connection via 3-pin connection terminal with plug-in contact technology.

Property	Value
Max. System power:	45 W
Rated luminous flux according to IEC 62722-2-1:	6300 lm
Suitable for number of lamps:	1
Length:	1504 mm
Width:	218 mm
Height/depth:	80 mm
Protection rating (IP):	IP44
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing colour:	white
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK04
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	70000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	Plug-in terminal
With control gear:	yes
Cover material:	Opal plastic
Light distributor:	Diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Rated service life L70/B50 at 25 °C:	70000 h
Rated service life L90/B10 at 25 °C:	50000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	without
Suitable for lamp power:	45 W
Luminaire luminous efficacy:	140 lm/W
Wiring type:	Termination
Number of poles:	3

Characteristics

Rated service life L90/B10 at 25 °C50000 h

HABPro-LPAK/1500 5400lm 840 ET

Manufacturer

HAN21665214180

GTIN4020863354849

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleMedium beam 21-40°

Rated lifetime L70/B50 at 25 °C70000 hours

Rated lifetime L80/B10 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-16300lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width218 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power45W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11Without

Height/Depth80 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy140lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length1504 mm

Max. system performance45W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK04

IP protection)IP44

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialSteel
