Ridi Leuchten 0321885SI691 VLMF-KARO-S 2500-840 M-SI LED device carrier

Ridi Leuchten 0321885SI691 VLMF-KARO-S 2500-840 M-SI LED device carrier

In stock

SKU: 1037033

Price on request

€277.24

€0

Overview

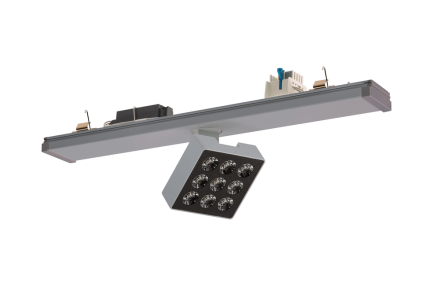

KARO spotlight module insert for mounting in VLTM mounting rail in combination with VLGF... device carriers. Additional VLMF module made of extruded aluminum profile, powder-coated in white, silver (-SI) or black (-SW). Spring steel clamps for fastening to the mounting rail. The VLMF modules can be placed variably between the VLGF... device carriers. Electrical adapter for flexible tapping of the power supply in the mounting rail. Color and optical coding for easy installation. Mechanical coding to prevent incorrect installation (twist protection). Spotlight rotatably mounted on module and wired to electrical adapter. Different optics are available for different areas of application, 46° flood (-F), 28° medium (-M), 11° spot (-S). Spotlight series in a modern square design. Spotlight housing square with rounded corners. Spotlight head can be rotated 360° and swiveled 110°. RIDI LED module with high-power LEDs and efficient TIR optics, passively cooled via the spotlight head. Spotlight head, converter housing and holding arm made of die-cast aluminum. Structured surfaces powder-coated in white (similar to RAL 9016), silver (similar to RAL 9006) or black (similar to RAL 9005). Cover around the individual LEDs powder-coated black. Installation: Installation on VLTM ... mounting rail using spring steel clips.

Property	Value
Max. System power:	27 W
Rated luminous flux according to IEC 62722-2-1:	2442 lm
Housing color:	Silver
Housing material:	Aluminum
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	500 mm
Width:	67 mm
Height/depth:	166 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	2.7 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Luminaire with limited surface temperature 'D-mark':	no
Suitable for number of bulbs:	9
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	yes
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	yes
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming poten ziometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light emission:	direct
Luminous efficiency:	90 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	yes
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABVLMF-KARO-S 2500-840 M-SI

Manufacturer

HAN0321885SI691

GTIN4029299518634

Rated luminous flux according to IEC 62722-2-12442lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width67 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power2.7W

Suitable for number of lamps9

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingYes

Housing colorSilver

Height/Depth166 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy90lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length500 mm

Max. system performance27W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceYes

Without dimming functionYes

IP protection)IP20

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable

Housing materialAluminum
