Ridi Leuchten 0321958AQ CIRQUA-L 2X3200-840 S-FSW LED track spotlight

Ridi Leuchten 0321958AQ CIRQUA-L 2X3200-840 S-FSW LED track spotlight

In stock

SKU: 1036466

Price on request

€333.76

€0

Overview

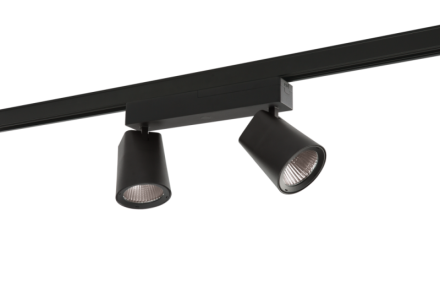

LED spotlight in a modern design for track mounting. Conical 100 mm reflector housing made of die-cast aluminum with internal cooling fins for maintenance-free passive cooling. Reflector housing connected to the die-cast aluminum device housing with integrated LED driver via a turn/tilt joint. Surfaces powder-coated in white (similar to RAL 9016) or black (FSW, similar to RAL 9005). High-gloss reflector made of pure aluminum. Clear protective glass generally installed. End ring of the reflector housing made of plastic. Reflector housing can be rotated 350° and pivoted 90°. COB LED module installed. A frame cover made of die-cast aluminum, attached via a magnetic connection, ensures a seamless transition between the track and device housing. Protection class IP20, protection class I. High-gloss reflector made of pure aluminum. Beam angle of spot reflector 16°. Installation: Installation via 3-phase adapter on power rail.

Property	Value
Max. System power:	52 W
Rated luminous flux according to IEC 62722-2-1:	6500 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	100 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	386 mm
Height/depth:	171 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	230 to 240 V
Suitable for lamp power:	23 W
Beam angle:	narrow beam 11-20°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high gloss
Suitable for number of bulbs:	2
Voltage type:	AC
Light color:	white
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	yes
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	yes
Dimming depending on the operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light emission:	direct
Luminous efficacy:	125 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	yes
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABCIRQUA-L 2X3200-840 S-FSW

Manufacturer

HAN0321958AQ

GTIN4029299501568

Beam angleNarrow beam 11-20°

Outer diameter100 mm

Rated luminous flux according to IEC 62722-2-16500lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power23W

Suitable for number of lamps2

Suitable for pendulum suspensionYes

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Housing colorBlack

Height/Depth171 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy125lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length386 mm

Max. system performance52W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230 to 240 V

SurfacePowder coated

Brushed surfaceYes

Without dimming functionYes

ReflectorHigh gloss

IP protection)IP20

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable

Housing materialAluminum
