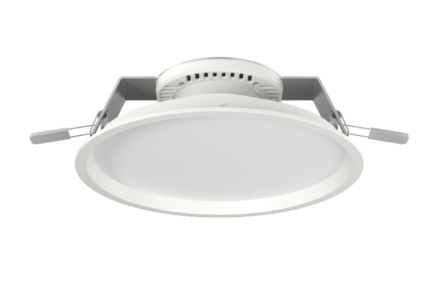

Ridi Leuchten 0326652 EDLR-E2 235/1100-840 WS-EL LED recessed ceiling spotlight

In stock
SKU: 1035917
€130.54
Into a basketIn the basketGo

Overview

Recessed downlight diameter 235 mm with RIDI LED module and passive heat sink, consisting of reflector housing and device carrier. Sturdy aluminum plate with tool-free fastening clips for ceiling installation. Light engine with functional module made of white polycarbonate attached underneath, for holding the reflector via bayonet lock. Diffuser made of transparent, satin-finished polycarbonate on the inside to protect the LEDs. Highly efficient RIDI LED module equipped with mid-power LEDs for uniform illumination and maximum efficiency. Driver as an independent device with mains connection terminal, cable strain relief and connection cable to the LED module. Luminaire suitable for use in emergency lighting systems. Protection class on the room side IP44, on the ceiling side IP20. Protection class I. Note: Connection terminals for one cable max. 1.5 mm. For through-wiring from luminaire to luminaire, the accessories, connection cables and T-connectors must be ordered separately. Diameter 235 mm. White reflector (similar to RAL9016, reflection-enhanced), made of polycarbonate, with pane. Installation: fastening clamps for clamp thicknesses from 0 to 20 mm pre-mounted on the luminaire housing as standard.

Property Value
Max. System power: 8 W
Rated luminous flux according to IEC 62722-2-1: 930 lm
Housing color: white
Housing material: plastic
Protection class (IP): IP20
Outer diameter: 235 mm
Light source: LED not replaceable
Protection class: I
With light source: yes
Installation height/depth: 80 mm
With operating device: yes
Suitable for recessed mounting: yes
Height/depth: 75 mm
With motion detector: no
Color temperature: 4000 K
Nominal voltage: 220 to 240 V
Suitable for lamp power: 8 W
Color rendering index CRI: 80-89
Suitable for ceiling mounting: no
Light distribution: symmetrical
Operating device: LED operating device current-controlled
Impact resistance: IK07
Luminaire with limited surface temperature 'D-mark': no
Reflector: white
Suitable for number of bulbs: 1
Voltage type: AC/DC
Light color: white
Suitable for track mounting: no
Adjustability: not adjustable
Suitable for clamp mounting: no
Suitable for pendulum suspension: no
Suitable for podium/floor mounting: no
Suitable for truss mounting: no
With light sensor: no
Suitable for surface mounting: no
Suitable for cable system: no
Brushed surface: yes
Dimming depending on operating device: yes
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: no
Dimming DMX: no
Dimming DSI: no
Dimming potentiometer (device integrated): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: yes
Light emission: direct
Luminous efficiency: 105 lm/W
Suitable for computer workstations according to EN 12464-1: no
Color consistency (McAdam ellipse): SDCM3

Characteristics

HABEDLR-E2 235/1100-840 WS-EL
ManufacturerRidi Leuchten
HAN0326652
GTIN4029299503432
Outer diameter235 mm
Rated luminous flux according to IEC 62722-2-1930lm
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation height/depth80 mm
Color consistency (McAdam ellipse)SDCM3
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for lamp power8W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Housing colorWhite
Height/Depth75 mm
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy105lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Max. system performance8W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
Brushed surfaceYes
Without dimming functionYes
ReflectorWhite
Impact resistanceIK07
IP protection)IP20
Protection classI
Voltage typeAC/DC
AdjustabilityNot adjustable
Housing materialPlastic
