Ridi Leuchten 0331230 EDLR 275/4000-840 OS-DALI LED recessed ceiling spotlight

Ridi Leuchten 0331230 EDLR 275/4000-840 OS-DALI LED recessed ceiling spotlight

In stock

SKU: 1034645

Price on request

€301.31

€0

Overview

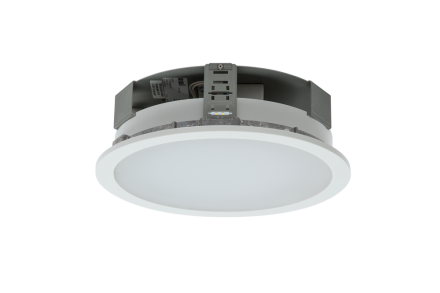

Recessed downlight, diameter 275 mm. Sturdy recessed ring made of die-cast metal with tool-free fastening clips for ceiling installation. Integrated holding device for tool-free attachment of the decorative ring or accessories. Decorative ring made of white polycarbonate with bayonet lock. LED modules designed as surface boards. Mid-power LEDs for uniform illumination and maximum efficiency. LED driver built into the luminaire housing. Protection class IP44 on the room side, IP20 on the ceiling side. Opal, satin-finished cover panel made of UV-resistant PMMA. Homogeneous illumination of the panel with no visible LED points. Installation: Installation in sawn ceiling openings. Fastening clips for clamp thicknesses from 0 to 25 mm.

Property	Value
Max. System power:	24 W
Rated luminous flux according to IEC 62722-2-1:	2940 lm
Housing color:	white
Housing material:	other
Protection class (IP):	IP20
Outer diameter:	275 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
Installation height/depth:	90 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	75 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	22 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Cover material:	opal plastic
Voltage type:	AC/DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	other
Brushed surface:	yes
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Luminous efficiency:	122 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABEDLR 275/4000-840 OS-DALI

Manufacturer

HAN0331230

GTIN4029299478259

Outer diameter275 mm

Rated luminous flux according to IEC 62722-2-12940lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth90 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power22W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth75 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy122lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Max. system performance24W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfaceOther

Brushed surfaceYes

Without dimming functionNo

ReflectorWithout

IP protection)IP20

Protection classI

Voltage typeAC/DC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialOther
