Ridi Leuchten 0331246 ADLR 410/6000-840 DPO-DALI LED ceiling light

Ridi Leuchten 0331246 ADLR 410/6000-840 DPO-DALI LED ceiling light

In stock

SKU: 1034791

Price on request

€587.08

€0

Overview

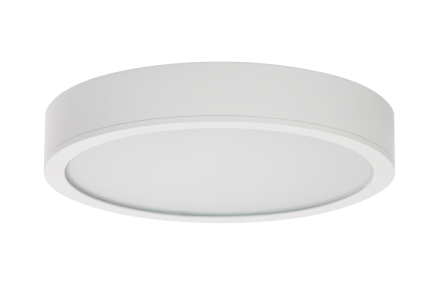

Surface-mounted downlight, diameter 410 mm for ceiling and pendant mounting, with RIDI LED module. Housing cylinder and device carrier plate made of sheet steel. Lower housing ring made of die-cast metal with integrated holder for tool-free attachment of the decorative ring. Housing powder-coated white (similar to RAL9016). Decorative ring made of die-cast metal, white powder-coated with bayonet lock. Protection class IP 40. Round RIDI LED module, equipped with mid-power LEDs, fastening via keyholes, electrical connection to the converter via plug connection. Passive cooling via large copper surfaces. Cover plate with embossed microprisms made of UV-resistant PMMA. Inside additional opal, satin-finished plate made of UV-resistant PMMA. Homogeneous illumination of the plate without visible LED points. Mounting: Direct ceiling mounting or with accessories for hanging on a rope pendulum.

>no

Property	Value
Max. System power:	37 W
Rated luminous flux according to IEC 62722-2-1:	4710 lm
Housing color:	white
Housing material:	steel
Protection class (IP):	IP40
Outer diameter:	410 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Height/depth:	68 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	33 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Suitable for number of bulbs:	1
Material of Cover:	Plastic opal
Voltage type:	AC/DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	yes
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Luminous efficacy:	127 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABADLR 410/6000-840 DPO-DALI

Manufacturer

HAN0331246

GTIN4029299486858

Outer diameter410 mm

Rated luminous flux according to IEC 62722-2-14710lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power33W

Suitable for number of lamps1

Suitable for pendulum suspensionYes

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth68 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy127lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Max. system performance37W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

ReflectorWithout

IP protection)IP40

Protection classI

Voltage typeAC/DC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialSteel
