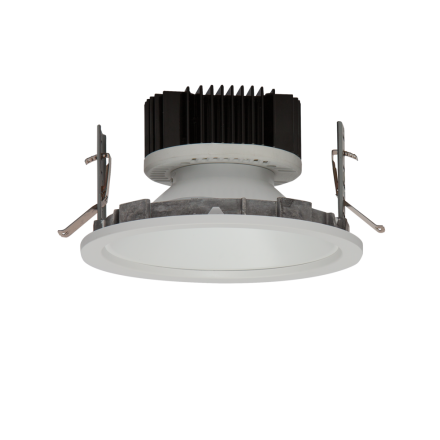

Ridi Leuchten 0331322 EDLR 195/3000-830 W-DALI LED recessed ceiling spotlight

Recessed downlight diameter 195 mm with LED module, consisting of reflector housing and device carrier. Equipped with RIDI LED module, 1100, 2000 and 3000 lumens with passive heat sink. Protection class room side IP40, ceiling side IP20. Diameter 195 mm. White reflector, made of pure aluminum, powder-coated similar to RAL9016, reflection-enhanced. Reflector housing: Stable installation ring made of die-cast metal with tool-free fastening clips for ceiling installation and reflector holding clips. Integrated holding device for tool-free attachment of the decorative ring or accessories. Decorative ring made of white polycarbonate with bayonet lock. Function module made of white polycarbonate, for holding the reflector via bayonet lock. Diffuser made of transparent polycarbonate with a satin finish on the inside to protect the LEDs, clipped into the function module (opal diffuser available on request). Device carrier: Device carrier plate made of galvanized sheet steel, carries the operating device, the mains connection terminal with cable strain relief and the connecting cable to the LED module. Cover made of thermally resistant polycarbonate, clipped on. Device carrier for emergency light version 90 mm high. Installation: In addition to the standard fastening clips for clamp thicknesses from 0 to 25 mm, special fastening sets such as panel installation kits, reinforcement plates, concrete pouring pots, plastering rings, angled and semi-recessed kits are available as accessories.
