Ridi Leuchten 0331511 EDLR-E2 195/1100-840 W-DALI LED recessed ceiling spotlight

Ridi Leuchten 0331511 EDLR-E2 195/1100-840 W-DALI LED recessed ceiling spotlight

In stock

SKU: 1035910

Price on request

€138.21

€0

Overview

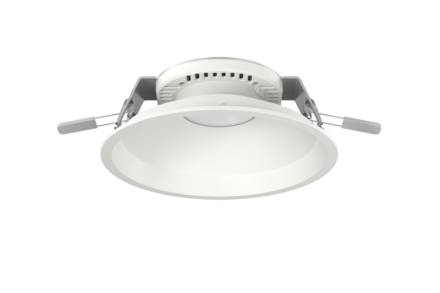

Recessed downlight diameter 195 mm with RIDI LED module and passive heat sink, consisting of reflector housing and device carrier. Stable aluminum plate with tool-free fastening clips for ceiling installation. Light engine with functional module made of white polycarbonate attached underneath, for holding the reflector via bayonet lock. Diffuser made of transparent, satin-finished polycarbonate on the inside to protect the LEDs. Highly efficient RIDI LED module equipped with mid-power LEDs for uniform illumination and maximum efficiency. Driver as an independent device with mains connection terminal, cable strain relief and connection cable to the LED module. Protection class on the room side IP44, on the ceiling side IP20. Diameter 195 mm. White reflector (similar to RAL9016, reflection-enhanced), made of polycarbonate. Mounting: Fastening clamps for clamp thicknesses from 0 to 20 mm pre-mounted on the luminaire housing as standard.

Property	Value
Max. System power:	8 W
Rated luminous flux according to IEC 62722-2-1:	1110 lm
Housing color:	white
Housing material:	plastic
Protection class (IP):	IP20
Outer diameter:	195 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
Installation height/depth:	70 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	65 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	8 W
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Impact resistance:	IK07
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	white
Suitable for number of bulbs:	1
Voltage type:	AC/DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	yes
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Luminous efficacy:	126 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABEDLR-E2 195/1100-840 W-DALI

Manufacturer

HAN0331511

GTIN4029299511284

Outer diameter195 mm

Rated luminous flux according to IEC 62722-2-11110lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth70 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power8W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth65 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy126lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Max. system performance8W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Brushed surfaceYes

Without dimming functionNo

ReflectorWhite

Impact resistanceIK07

IP protection)IP20

Protection classI

Voltage typeAC/DC

AdjustabilityNot adjustable

Housing materialPlastic
