Ridi Leuchten 0331884 KARO-S 2500-840 S-DA LED track spotlight

Ridi Leuchten 0331884 KARO-S 2500-840 S-DA LED track spotlight

In stock

SKU: 1035372

Price on request

€332.53

€0

Overview

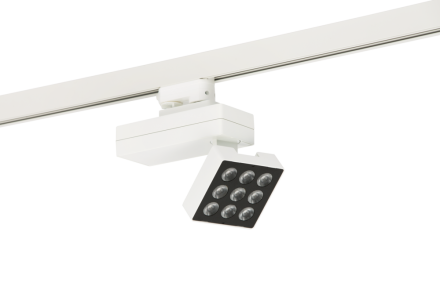

LED spotlight for power rail mounting. Device housing, spotlight housing and support arm made of die-cast aluminum, white (similar to RAL 9016), silver (similar to RAL 9006) or black (similar to RAL 9005) powder-coated, finely structured with a satin finish. Spotlight front panel made of sheet steel with 9 lasered round recesses for the lens optics, black powder-coated. 3-phase power rail adapter rigidly connected to device housing. Spotlight housing can be rotated 360° using support arm, can be pivoted 110°. Lens optics made of PMMA, heat-resistant, high transmission rate. RIDI-LED module built in, color tolerance 50,000 h. Beam angle with spot lens optics (-S) 11° Installation: Installation on 3-phase power rail. Not intended for wall mounting.

Property	Value
Max. System power:	27 W
Rated luminous flux according to IEC 62722-2-1:	2488 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	177 mm
Width:	100 mm
Height/depth:	212 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	2.7 W
Beam angle:	narrow beam 11-20°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Luminaire with limited surface temperature 'D-mark':	no
Suitable for number of bulbs:	9
Voltage type:	AC
Light color:	white
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	yes
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming ung DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Luminous efficiency:	92 lm/W
Suitable for computer workstations according to EN 12464-1:	yes
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABKARO-S 2500-840 S-DA

Manufacturer

HAN0331884

GTIN4029299433807

Beam angleNarrow beam 11-20°

Rated luminous flux according to IEC 62722-2-12488lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width100 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power2.7W

Suitable for number of lamps9

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Housing colorWhite

Height/Depth212 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy92lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length177 mm

Max. system performance27W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceYes

Without dimming functionNo

IP protection)IP20

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable

Housing materialAluminum
