Ridi Leuchten 0332091AQ CIRQUA-LI 1X3100-930 DA-M-FSW LED track spotlight

Ridi Leuchten 0332091AQ CIRQUA-LI 1X3100-930 DA-M-FSW LED track spotlight

In stock

SKU: 1037607

Price on request

€248.25

€0

Overview

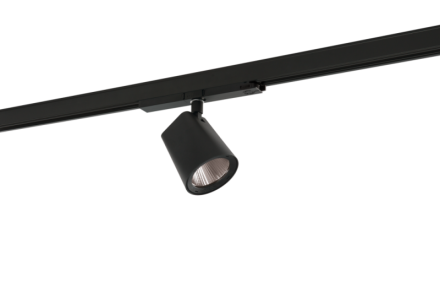

LED spotlight in a modern design for track mounting. Conical reflector housing 100 mm made of die-cast aluminum with internal cooling fins for maintenance-free passive cooling. Reflector housing connected to the compact polycarbonate device housing with integrated LED driver via a turn/tilt joint. Surfaces powder-coated in white (similar to RAL 9016) or black (FSW, similar to RAL 9005). High-gloss reflector made of pure aluminum. Clear protective glass always installed. End ring of the reflector housing made of plastic. Reflector housing can be rotated 350° and pivoted 90°. COB LED module installed. Seamless transition between track and device housing. Protection rating IP20, protection class II. High-gloss reflector made of pure aluminum. Beam angle of medium reflector 24°. Installation: Installation via 3-phase adapter on power rail.

Property	Value
Max. System power:	34 W
Rated luminous flux according to IEC 62722-2-1:	3090 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	100 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	265 mm
Width:	100 mm
Height/depth:	160 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	31 W
Beam angle:	medium beam 21-40°
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK08
Luminaire with limited surface temperature 'D-mark':	no
Suitable for number of bulbs:	1
Voltage type:	AC
Light color:	white
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Surface brushed:	yes
Dimming depending on the operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Luminous efficacy:	90 lm/W
Suitable for computer workstations according to EN 12464-1:	yes
Colour consistency (McAdam ellipse):	SDCM3

Characteristics

HABCIRQUA-LI 1X3100-930 DA-M-FSW

Manufacturer

HAN0332091AQ

GTIN4029299566338

Beam angleMedium beam 21-40°

Outer diameter100 mm

Rated luminous flux according to IEC 62722-2-13090lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width100 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color rendering index CRI90-100

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power31 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Housing colorBlack

Height/Depth160 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy90lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length265 mm

Max. system performance34W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceYes

Without dimming functionNo

Impact resistanceIK08

IP protection)IP20

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable

Housing materialAluminum
