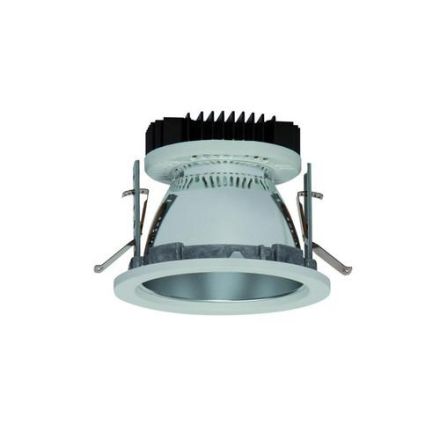

Ridi Leuchten 0336668//408 EDLR 150/2000-TW-SMB-CAS LED recessed ceiling spotlight

In stock
SKU: 1036553
€548.76
Into a basketIn the basketGo

Overview

Recessed downlight, diameter 150 mm with LED module, consisting of reflector housing and device carrier. Equipped with RIDI LED module, 1100 and 2000 lumens with passive heat sink. Protection class on the room side IP40, on the ceiling side IP20. TW: Luminaire with Tunable White (...-TW...), separate control of the light colors 3000 and 6500 Kelvin. Reflector housing: Stable mounting ring made of die-cast metal with tool-free fastening clips for ceiling installation and reflector holding clips. Integrated holding device for tool-free attachment of the decorative ring or accessories. Decorative ring made of white polycarbonate with bayonet lock. Function module made of white polycarbonate, for holding the reflector via bayonet lock. Diffuser made of transparent polycarbonate with satin finish on the inside to protect the LEDs, clipped into the function module (opal diffuser available on request). Device carrier: Device carrier plate made of galvanized sheet steel, carries the operating device, the mains connection plug-in terminal with cable strain relief and the connecting cable to the LED module. Cover made of thermally resistant polycarbonate clipped on. Device carrier for emergency light version 90 mm high. Installation: In addition to the standard fastening clamps for clamp thicknesses from 0 to 25 mm, special fastening sets such as panel installation kits, reinforcement plates, concrete pouring pots, plaster rings, angled and semi-recessed kits are available as accessories.

Property Value
Max. System power: 16 W
Rated luminous flux according to IEC 62722-2-1: 1840 lm
Housing color: white
Housing material: steel
Protection class (IP): IP20
Outer diameter: 150 mm
Light source: LED not replaceable
Protection class: I
With light source: yes
Installation height/depth: 115 mm
With operating device: yes
Suitable for recessed mounting: yes
Height/depth: 111 mm
With motion detector: no
Color temperature: 3000 to 6500 K
Nominal voltage: 220 to 240 V
Suitable for lamp power: 14 W
Color rendering index CRI: 80-89
Suitable for ceiling mounting: no
Light distribution: symmetrical
Operating device: LED operating device current-controlled
Luminaire with limited surface temperature 'D-mark': no
Reflector: matt
Suitable for number of bulbs: 1
Voltage type: AC/DC
Light color: white
Suitable for track mounting: no
Adjustability: not adjustable
Suitable for clamp mounting: no
Suitable for pendulum suspension: no
Suitable for pedestal/floor mounting: no
Suitable for truss mounting: no
With light sensor: no
Suitable for surface mounting: no
Suitable for cable system: no
Surface: galvanized
Brushed surface: yes
Dimming depending on operating device: yes
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: yes
Dimming DMX: no
Dimming DSI: no
Dimming potentiometer (device integrated): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: no
Light emission: direct
Luminous efficiency: 115 lm/W
Suitable for computer workstations according to EN 12464-1: no
Color consistency (McAdam ellipse): SDCM3

Characteristics

HABEDLR 150/2000-TW-SMB-CAS
ManufacturerRidi Leuchten
HAN0336668//408
GTIN4029299527049
Outer diameter150 mm
Rated luminous flux according to IEC 62722-2-11840lm
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation height/depth115 mm
Color consistency (McAdam ellipse)SDCM3
Color temperature3000 to 6500 K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for lamp power14W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Housing colorWhite
Height/Depth111 mm
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy115lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Max. system performance16W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
SurfaceGalvanized
Brushed surfaceYes
Without dimming functionNo
ReflectorFrosted
IP protection)IP20
Protection classI
Voltage typeAC/DC
AdjustabilityNot adjustable
Housing materialSteel
