Ridi Leuchten 0420641//377 RUFO 600/5000-830 EDS3 LED wall/ceiling light

Ridi Leuchten 0420641//377 RUFO 600/5000-830 EDS3 LED wall/ceiling light

In stock

SKU: 1035390

Price on request

€532.34

€0

Overview

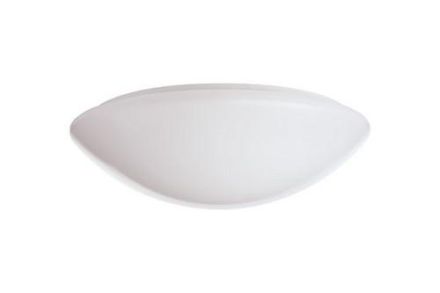

Round single tub luminaire with LED modules for ceiling or wall mounting. Round, deep-drawn, torsion-resistant sheet steel housing, white powder-coated. Spring clips for fastening the tub. Equipped with RIDI LED modules. LED rectangular modules mounted on the luminaire base and additionally on hat profile angles for homogeneous illumination of the luminaire tub. LED modules with copper coating on both sides for optimum heat distribution. Note: Luminaire luminous flux in emergency light mode: 150lm Semi-circular artificial glass tub made of opal, impact-resistant, UV-stabilized polycarbonate (PC). Structured tub surface. Impact resistance IK10. Installation: Direct ceiling/wall mounting without additional accessories.

Property	Value
Max. System power:	37 W
Rated luminous flux according to IEC 62722-2-1:	4680 lm
Suitable for number of lamps:	8
Height/depth:	165 mm
Protection rating (IP):	IP40
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	3000 K
Impact resistance:	IK10
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Outer diameter:	600 mm
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
With operating device:	yes
Cover material:	Opal plastic
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Suitable for lamp power:	4 W
Luminaire luminous efficacy:	126 lm/W

Characteristics

HABRUFO600/5000-830EDS3

Manufacturer

HAN0420641//377

GTIN4029299488708

Outer diameter600 mm

Rated luminous flux according to IEC 62722-2-14680lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power4W

Suitable for number of lamps8

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth165 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy126lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Max. system performance37W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230 to 240 V

Without dimming functionYes

Impact resistanceIK10

IP protection)IP40

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialSteel
