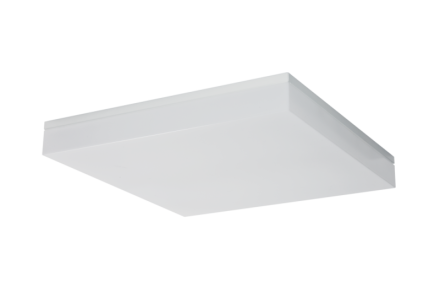

Ridi Leuchten 0422158 LF-LED-414/10400/840 LED ceiling light

Ridi Leuchten 0422158 LF-LED-414/10400/840 LED ceiling light

In stock

SKU: 1034850

Price on request

€548.76

€0

Overview

Dish luminaire for ceiling or wall mounting with RIDI LED modules. Protection class IP64. Luminaire housing made of torsion-resistant, edged galvanized sheet steel, white powder-coated, color RIDI reflective white, similar to RAL9016. All-round seal between the dish and the luminaire housing depending on the protection class. Sealing disc to seal the fastening opening between the ceiling and the luminaire housing. Dish fastening without tools using spring steel clips. Dishes made of UV-resistant opal PMMA using an injection molding process, resulting in a uniform wall thickness across the entire dish cross-section. Square design 620 x 620 mm with opal dish. Installation: Direct ceiling or wall mounting without additional accessories.

Property	Value
Max. System power:	64 W
Rated luminous flux according to IEC 62722-2-1:	8081 lm
Suitable for number of lamps:	2
Length:	620 mm
Width:	620 mm
Height/depth:	81 mm
Protection rating (IP):	IP64
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
With operating device:	yes
Cover material:	Opal plastic
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent from the control gear:	yes
Suitable for lamp power:	28 W
Luminaire luminous efficacy:	126 lm/W

Characteristics

HABLF-LED-414/10400/840

Manufacturer

HAN0422158

GTIN4029299419023

Rated luminous flux according to IEC 62722-2-18081lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width620 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power28W

Suitable for number of lamps2

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth81 mm

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy126lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length620 mm

Max. system performance64W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

IP protection)IP64

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialSteel
