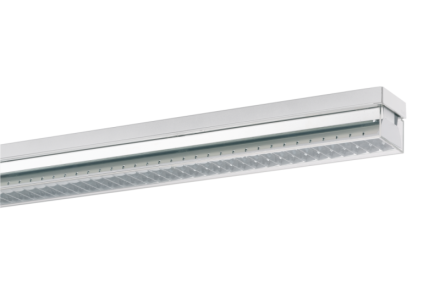

Ridi Leuchten 0460010 LF-T16-S-R1X055/15DA-SM LED diffuser light

Ridi Leuchten 0460010 LF-T16-S-R1X055/15DA-SM LED diffuser light

In stock

SKU: 1035448

Price on request

€314.88

€0

Overview

Single light for ceiling or pendant mounting. Light housing made of torsion-resistant profiled sheet steel, white or silver (SI) resin-coated, with attached plastic end pieces. End pieces with breakout openings 3x 10 mm and 1x 10 mm x 20 mm for front-side cable entry. Reflector made of sheet steel, white resin-coated, to increase efficiency and to cover the electrical components. All-round seal between the cover and light housing, depending on the protection class. Sealing spacer to seal the fastening opening between the ceiling and light housing. Cover can be attached without tools using integrated retaining clips in the light housing. For RIDI-TUBE lamps (to be ordered separately). Extruded plastic cover made of transparent, UV-stabilized polycarbonate (PC) with welded-on injection-molded end caps. With inserted parabolic mirror louvre made of reflection-enhanced, matt anodized pure aluminum with silver coating. For RIDI-TUBE lamps. Installation: Direct ceiling mounting without additional accessories. Pendant mounting with corresponding fastening sets ZSP...LF-T16-S.

Property	Value
Max. System power:	9 W
Rated luminous flux according to IEC 62722-2-1:	970 lm
Suitable for number of lamps:	1
Length:	598 mm
Width:	85 mm
Height/depth:	72 mm
Protection rating (IP):	IP64
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	230 to 240 V
Housing color:	white
Housing material:	steel
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	no
Light source:	LED replaceable
Socket:	other
With operating device:	yes
Cover material:	transparent plastic
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	yes
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
Grid design:	matt
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent from the control gear:	yes
Suitable for lamp power:	15 W
Luminaire luminous efficacy:	107 lm/W

Characteristics

HABLF-T16-S-R1X055/15DA-SM

Manufacturer

HAN0460010

GTIN4029299495034

Execution of the gridFrosted

Rated luminous flux according to IEC 62722-2-1970lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width85 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power15W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Suitable for wall mountingNo

Housing colorWhite

Height/Depth72 mm

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy107lm/W

LampsLED replaceable

Light emissionDirect

Light distributionSymmetrical

Length598 mm

Max. system performance9W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage230 to 240 V

Without dimming functionNo

IP protection)IP64

Protection classI

Voltage typeAC

Cover materialPlastic transparent

Housing materialSteel
