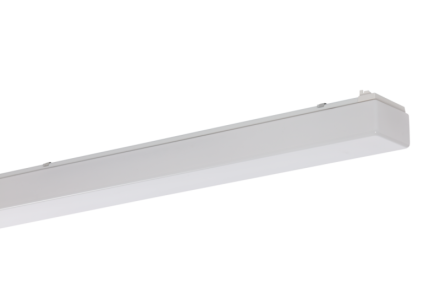

Ridi Leuchten 0550010 LFN-T16-R1X115/30ND-O ceiling light

Ridi Leuchten 0550010 LFN-T16-R1X115/30ND-O ceiling light

In stock

SKU: 1034120

Price on request

€138.48

€0

Overview

Single light for ceiling or wall mounting. Protection class IP50. Light housing made of torsion-resistant profiled sheet steel, white resin-coated, color similar to RAL9016. Attached plastic end pieces made of UV-stabilized white PC. Protection class-dependent, seamless, all-round foamed 2-component seal between the cover and the light housing. Sealing disc to seal the fastening opening between the fastening surface and the light housing. Fastening lugs 9mm high for guiding power cables between the light and the fastening surface. Cover fastening without tools using metal twist-lock fasteners with plastic seal in the light housing. Silicone-free design. For RIDI-TUBE lamps (to be ordered separately). Blown plastic cover made of opal, UV-resistant PMMA. For RIDI-TUBE lamps. Installation: Direct ceiling or wall mounting without additional accessories. Band mounting with fixed luminaire spacing with LFN-LVDM accessory. Can be mounted on support rails using appropriate luminaire fasteners.

Property	Value
Max. System power:	35 W
Rated luminous flux according to IEC 62722-2-1:	4000 lm
Suitable for number of lamps:	1
Length:	1205 mm
Width:	90 mm
Height/depth:	70 mm
Protection rating (IP):	IP50
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	230 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
With light source:	no
Light source:	LED replaceable
Socket:	other
With operating device:	yes
Cover material:	Plastic opal
Without Dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Suitable for lamp power:	30 W
Luminaire luminous efficacy:	114 lm/W

Characteristics

HABLFN-T16-R1X115/30ND-O

Manufacturer

HAN0550010

GTIN4029299444926

Rated luminous flux according to IEC 62722-2-14000lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width90 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power30W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorWhite

Height/Depth70 mm

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy114lm/W

LampsLED replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1205 mm

Max. system performance35W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage230 to 240 V

Without dimming functionYes

IP protection)IP50

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialSteel
